Microscopios > Microscopios > Lupas estereo > Sets estéreo zoom > Optika > Optigem > Optika Microscopio stereo zoom OPTIGEM-2, trinocular, gemología, trípode inclinable
Nº de producto: 25433

Microscopio stereo zoom OPTIGEM-2, trinocular, gemología, trípode inclinable

PVP: $ 1.600,00 Nuestro precio:
$ 1.440,00 IVA incluido, más gastos de envío
¿demasiado caro?
Rojo
Este producto ya no está disponible + Tiempo transporte

Descripción del producto

La descripción de este producto no está disponible en español. Esperamos que la versión en inglés le sea de utilidad. En cualquier caso, sentimos las molestias.

GEM Series

OPTIKA GEMOLOGY Series includes stereomicroscopes purposely designed for stone inspection and stone setting. Jewels and gems have a variety of grade, which ultimately influence their value and cost on the market; therefore it is important to have solutions that are purposely designed for gemology.

Choose between 20mm or 22mm field of view and simple or gemological stand, depending by the model.

Especially OPTIGEM Series offers the ideal configuration, with multiple options for illumination and contrast techniques, such as incident, transmitted and oblique brightfield / darkfield, polarization and immersion analysis. They come with a special optical condenser configuration to ensure real, perfect darkfield application. OPTIGEM-1 & OPTIGEM-2 are two-in-one gemology instruments that can be used both in vertical and horizontal position in a very easy way, just by turning one knob: the horizontal position extends the use of a gemological microscope, giving the possibility to perform immersion analysis by submerging a sample in liquid.

Specifically Designed for Specialists

Gemological stereomicroscopes are meant to help with stone inspection and stone setting. Jewels and gems have a variety of grades (or quality levels), which ultimately influence their value and cost on the market; therefore it is important to have solutions that are purposely designed for gemology. These tereomicroscopes are equipped with iris and darkfield condenser on the bottom light source, and with a set of on stage tweezers to hold the stone in place.

Much More Than Gemological Stereomicroscopes

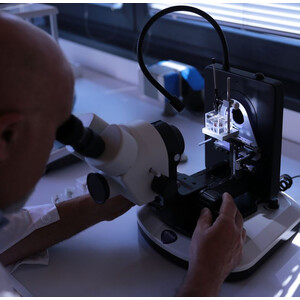

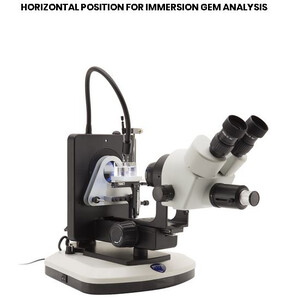

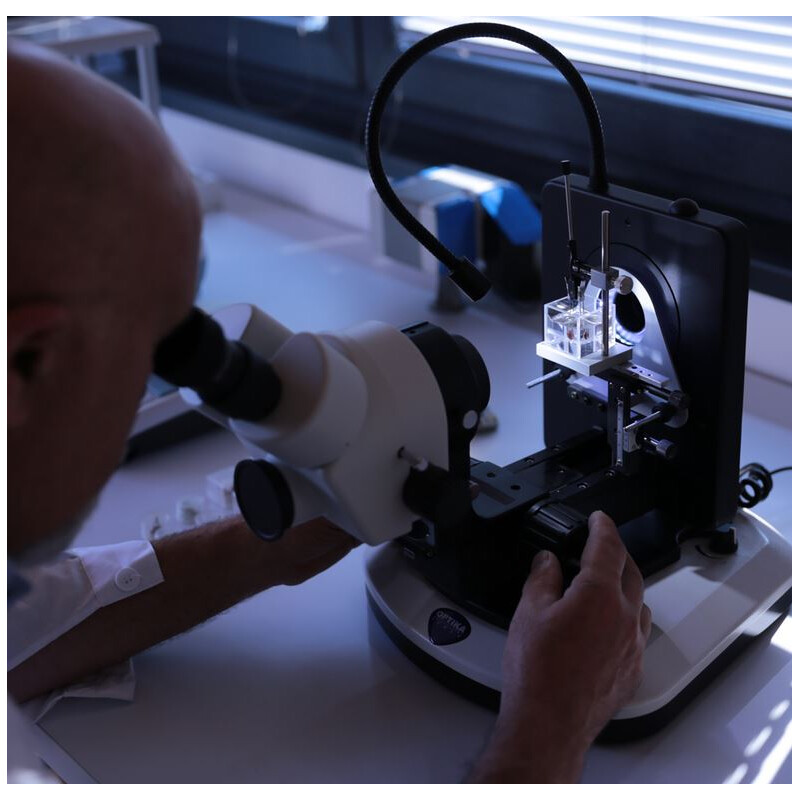

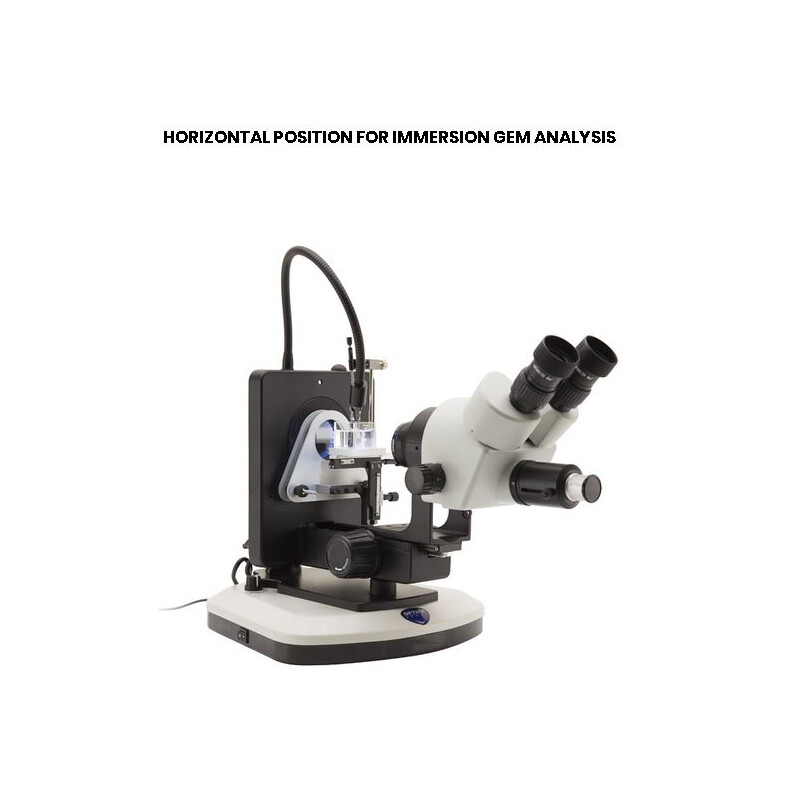

OPTIGEM-1 & OPTIGEM-2 are two-in-one gemology instruments that can be used both in vertical and horizontal position in a very easy way, just by turning one knob (no disassembling and re-assembling operations are required). The horizontal position extends the use of a gemological microscope, giving the possibility to perform immersion analysis by submerging a sample in liquid. If the stone’s refractive index is close to the liquid’s one, immersion makes the interior more visible by reducing the effects of refraction and surface reflection. This enables you to see a gem’s inclusions or color distribution more easily. Immersion is also necessary to see crystal growth structures, which might help you separate natural from synthetic corundum. Features like curved growth striae in flame-fusion synthetics, or separation planes in assembled stones, are often far easier to see when the stone is immersed.

Incredibly Versatile Operations

OPTIGEM Series offers multiple options for illumination and contrast techniques, such as incident, transmitted and oblique brightfield darkfield, polarization and immersion analysis (only on Optigem 1 & 2). They come with a special (see the dedicated chapter for further information) optical condenser configuration to ensure real, perfect darkfield application.

Ultrabright LED Condenser for Optimized Illumination

An ultrabright LED-based electronic condenser with intensity control allows to switch from brightfield to darkfield; it also produces perfectly the colourvof daylight. The condenser uses a new optical configuration especially created in order to obtain a perfect darkfield application.

Dedicated LED Illumination For Outstanding Results During Grading

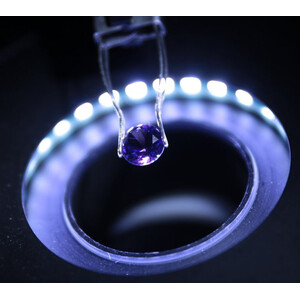

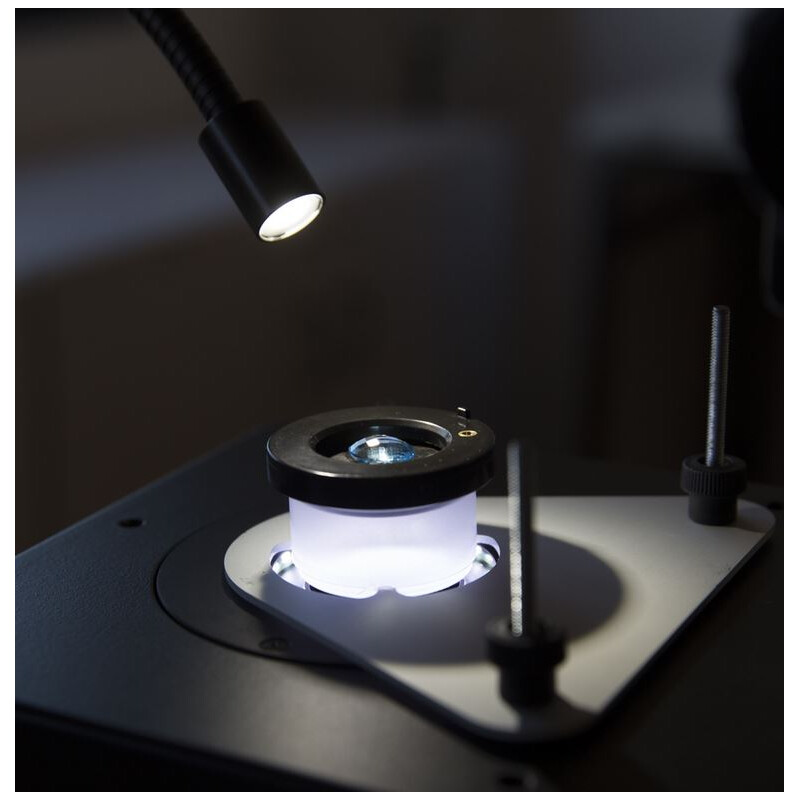

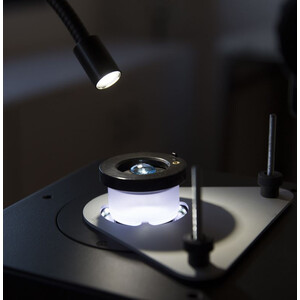

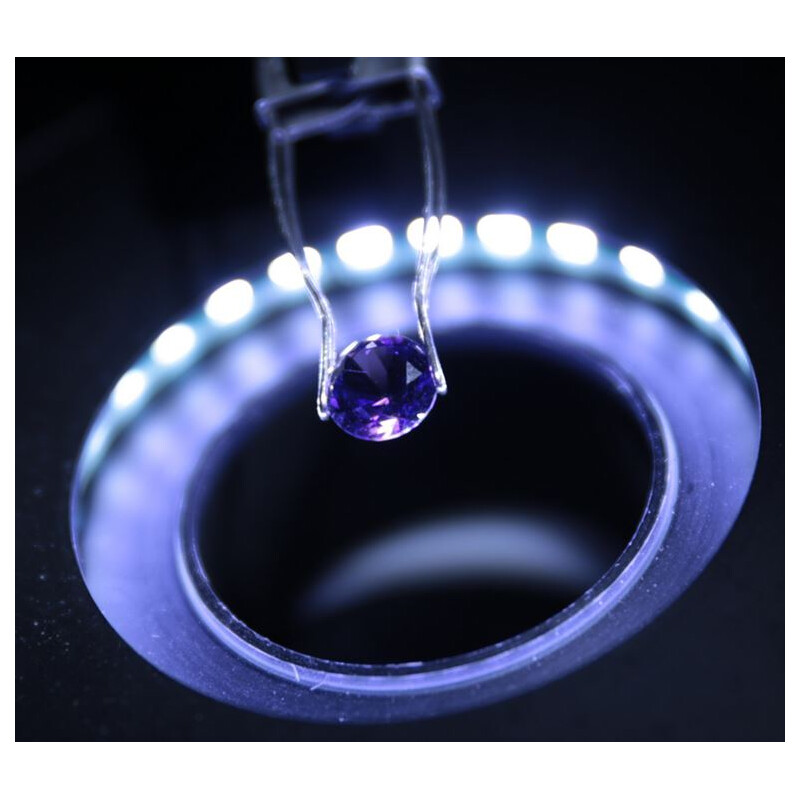

The requirement for a pure white (6.3000 K), particularly high intensity light is because only incident light is seen: a flexible arm can be freely positioned and the brightness of the LED illumination accurately adjusted. LED transmitted illumination is available through a diffusing disc (for brightfield) or as a side-emitting LED ring (darkflield, with black background) only on Optigem 1 & 2. A selector gives the chance to set the microscope in 3 configurations: brightfield only, darkfield only, or both brightfield and darkfield.

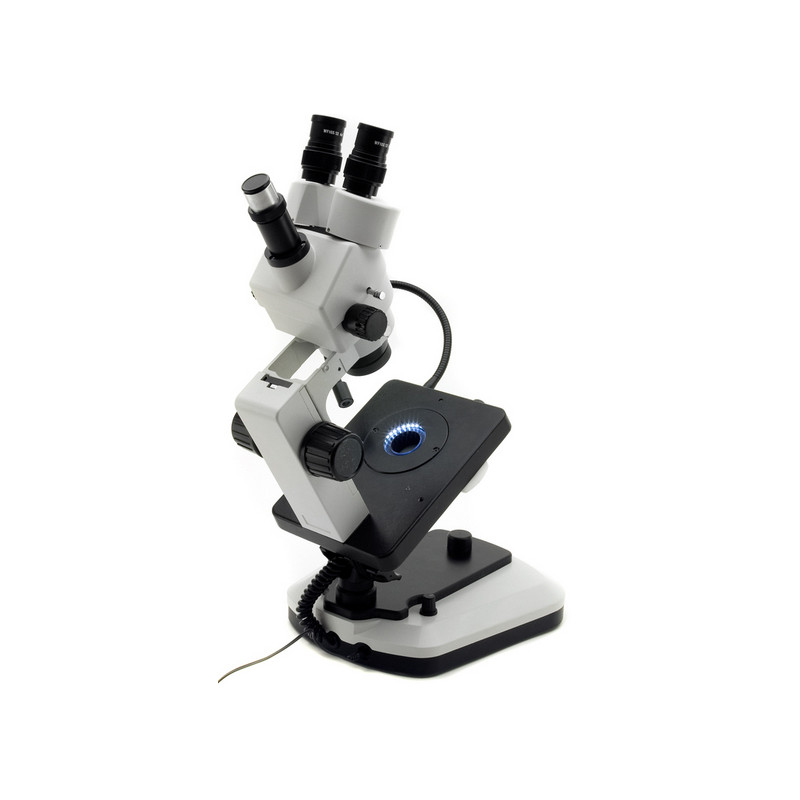

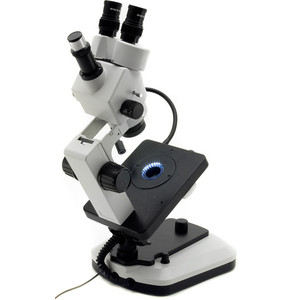

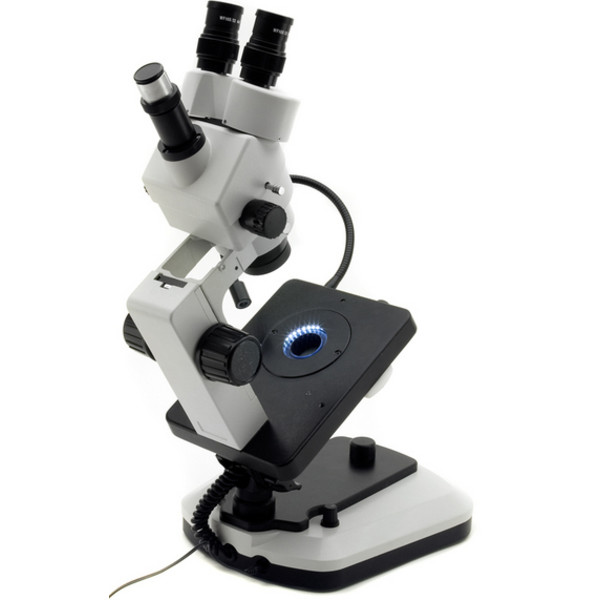

OPTIGEM-2

Observation mode: Brightfield, darkfield.

Heads: Trinocular, 45° inclined, 360° rotating

Illumination

Incident illumination: flexible arm with fluorescent tube 7W 6400K (pure white). Independent ON/OFF switch.

Transmitted illumination: system for observation with brightfield and darkfield, based on 30W halogen illumination and a dedicated reflecting system. Brightness adjustment.

Iris diaphragm and removable black background for contrast enhancement with darkfield.

Input: 240Vac, 50Hz; Fuse T3.15A 250V

Max. required power: 45W

Focusing By means of a rack and pinion controlled by a pair of knobs placed on both sides of the stereomicroscope.

Stage Adjustable gemology clip.

Base 360° rotating.

Stand Rack-and-pinion stand (it can be inclined 45°).

Base: 305x260x70h mm.

Weight: 7 Kg

Diopter adjustment on both eyepieces.

Interpupillary adjustment 55-75 mm.

Eyepieces Widefield eyepieces WF10x/22 with field number 22.

Objectives Parfocal achromatic objective 1X

Working distance: 110 mm

Zoom range: 0,67x - 4,5x

Zoom factor: 6,71:1

Accessories Instruction manual and dust cover included.

Especificaciones

Sistema óptico


Iluminación
Luz de incidencia y de transmitancia
Tipo de lámpara
LED
Aumento
7-45
Tipo de objetivo
Acromático
Ocular
10x/22 Weitfeld
Sistema óptico
Greenough

Mecánica


Tipo de construcción
Trinocular
Postura de observación (°)
ángulo de observación de 45o, cabazal giratorio en 360o

Peculiaridades


Servicio con acumulador eléctrico
Alojamiento de filtro
Cámara digital integrada
Diafragma de campo luminoso
Bolsa protectora contra polvo
Mesa de centrado
-

En general


Longitud (mm)
270
Anchura (mm)
210
Altura (mm)
60
Peso (g)
6000
Serie
Optigem
Color
blanco

Campo de aplicación


Industria

Aplicaciones


Microbiología
