SZM168 series
Versatile Stereo Microscope Solution

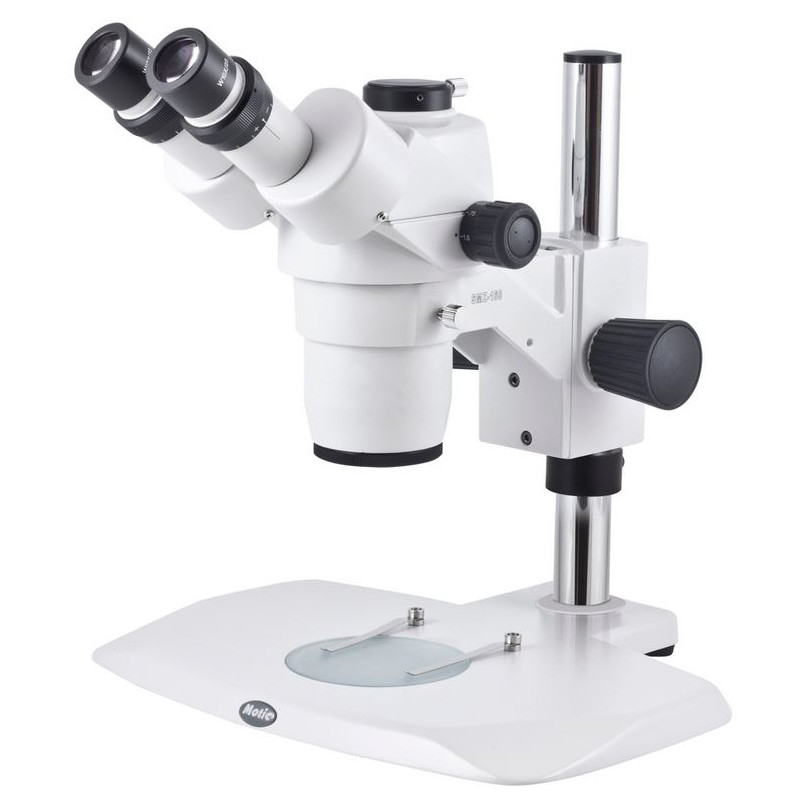

The SMZ168 Stereo Zoom microscope represents the top-of-the-line model in Motic’s successful SMZ Series of stereo microscopes. Designed for a wide range of biological and material science applications, the SMZ168’s optical quality and versatile accessories will satisfy the most demanding user applications in both routine and research fields. From industrial quality control to biological preparation work, the SMZ168 is a durable workhorse model ready for a variety of applications.
Its Greenough optical system comes with a large zoom range of 6.7:1, parfocal at all magnifications. Its 5-position click-stop magnification mechanism, implemented into the continuous zoom, enables precise reproduction of magnifications, thus simplifying measurements.
An impressive 3-dimensional upright image, combined with an industry leading working distance of 113mm in its standard configuration, allows easy manipulation of the sample. Further, the SMZ168 can convert easily into a complete documentation station by combining it with a member of the Moticam camera series.
The SMZ-168 stereomicroscope provides a reliable, high-quality stereomicroscope for a wide range of potential applications. The Greenough zoom optical system with a zoom ratio of 6.7:1,one of the industries largest, provides a total magnification of up to 50x, suitable for most applications--addition of auxiliary lenses and/or eyepieces enables a magnification of up to 320x with a maximum possible working distance of up to 324 mm. Additional accessories such as polarization and dark field attachments further enhance the versatility of the SMZ-168 stereomicroscope.
Adding a Moticam microscopy camera enables the SMZ-168 stereomicroscope to become a complete documentation workstation. Options such as various stands, head holders, and articulating boom stands ensure that the SMZ-168 will fit perfectly into your workflow. Taken together, the SMZ-168 is a high quality, reliable, and highly versatile stereomicroscope for a wide range of environments and potential applications.
Model: SMZ-168-TP
Optical System: Greenough
Observation Tube: Trinocular head
Interpupillary distance: 54-76mm
Diopter adjustment: On both tubes , +/- 5 diopter
Trinocular light split: 100:0 / 0:100 on left eyepiece
Inclination: 35º inclined, 360º rotating
Eyepieces: WF10X/23mm
Objectives system: Zoom, ratio1:6,7
Objectives magnification: 0,75X~5X
Working distance: 113mm
Stand: Pole type stand
Base: 329x277mm
Column/Arm: Ø32mm, 295mm high
Optical body with head holder: For Ø32mm column and Ø76mm head
Focus mechanism: Coarse focusing system with tension adjustment
Focusing stoke: 49mm
Accessories included: Black and white stage plates and dust cover
Length x Width x Height: 329x277x365mm
Weight: 5,2KG
