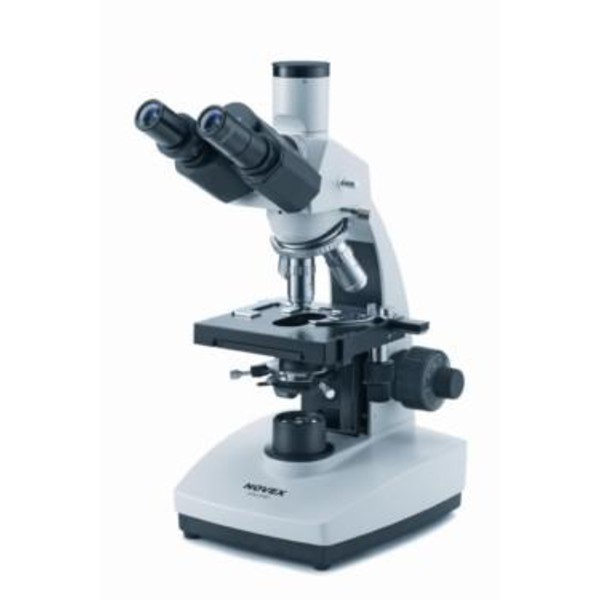

Novex B-series trinocular microscope BBSPH4 for phase contrast

• DIN widefield eyepieces WF10x/18
• Trinocular head with 30° inclined tube, fully rotatable over 360°. Tube length 160 mm
  Interpupillary distance adjustable between 55 and 75 mm. One eyepiece with diopter adjustment
• Revolving inward facing nosepiece, ball-bearing mechanism, for 4 objectives
• Semi-plan objectives SMP 4x N.A. 0.10, SMP 10x N.A. 0.25 and SMP 100x N.A. 1.25 oil immersion. With semi-plan phase objective PLPH S40x N.A. 0.65. The 40x and 100x objectives are spring-mounted. All optical parts are coated
• Heavy alloy stand is enameled with a stove-hardened off-white and black lacquer. Focus control by means of coaxial coarse and fine adjustment knobs; fine adjustment knob is graduated for 0.002 mm per interval
• Large mechanical stage, 120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm. Double nonius, readable in 0.1 mm. Detachable slide holder
• Phase contrast set - medium dark - with phase condenser N.A 1.25 in slider with position for 40x phase contrast and bright field. In centrable holder, with iris diaphragm and filter holder with neutral filter and blue filter. Vertical adjustment by means of control knob
• Packed with dust cover, filters, tools, immersion oil and tools in styrofoam case

• Built-in halogen 6 volt 20 watt illuminator with neutral filter. Light intensity adjustable with thyristor control. Built-in 230 volt transformer
