Novex Microscopio BMPH 86.310

Nº de producto: 9784
Fabricante: Novex

$ 1.310,00

IVA incluido
más gastos de envío

listo para envíar en 1-2 semanas

+ Tiempo transporte
Novex Microscopio BMPH 86.310
Novex Microscopio BMPH 86.310
Descripción del producto
Opiniones de clientes
Accesorios recomendados

Descripción del producto:

La descripción de este producto no está disponible en español. Esperamos que la versión en inglés le sea de utilidad. En cualquier caso, sentimos las molestias.

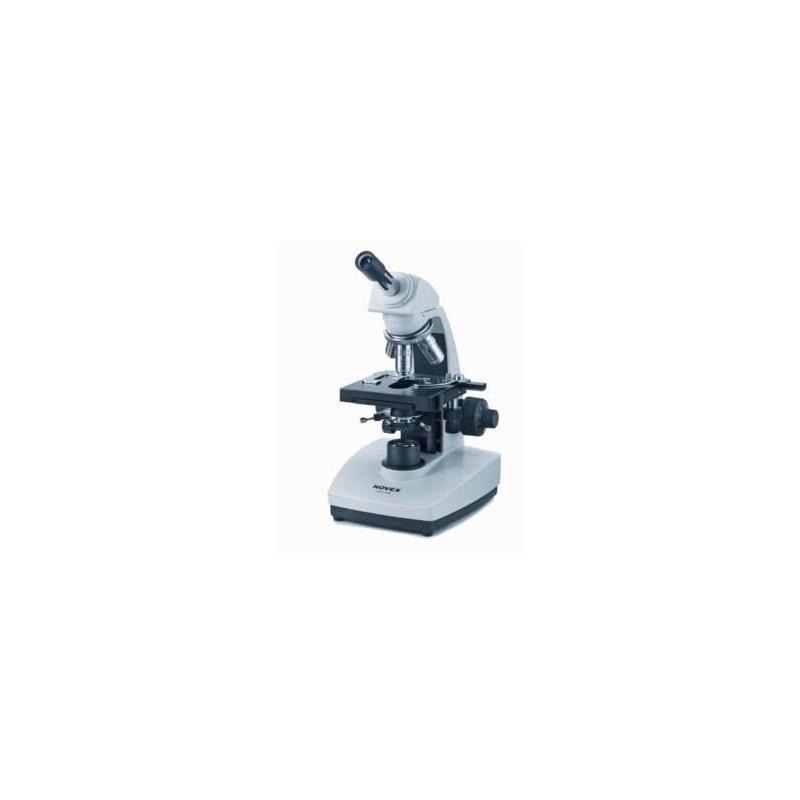

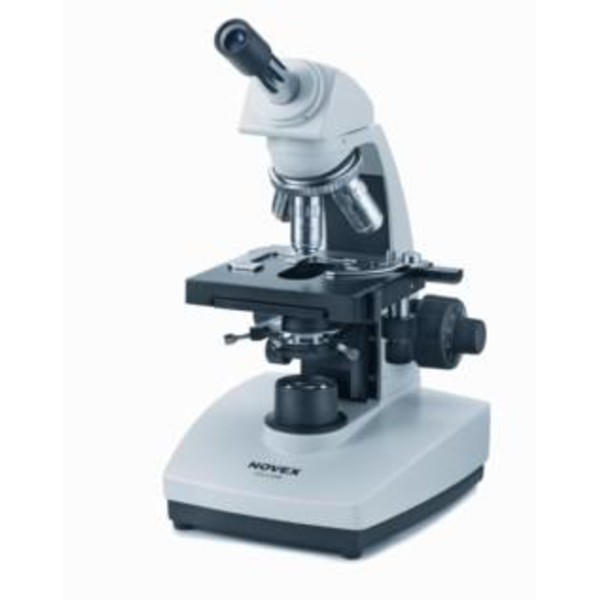

Novex B-series monocular microscope BBPH for phase contrast

  • DIN widefield eyepiece WF10x/18
  • Monocular head with 30° inclined tube, fully rotatable over 360°. Tube length 160 mm. Interpupillary distance adjustable between 55 and 75 mm. One eyepiece with diopter adjustment
  • Revolving inward facing nosepiece, ball-bearing mechanism, for 4 objectives
  • Semi-plan phase DIN-objectives PH 10x /N.A.0.25, PH 20x/ N.A.0.40, PH S40x/ N.A.0.65 and PH S100x/ N.A.1.25 oil-immersion. The 40x and 100x objectives are spring-mounted. All optical parts are coated
  • Heavy alloy stand is enameled with a stove-hardened off-white and black lacquer. Focus control by means of coaxial coarse and fine adjustment knobs; fine adjustment knob is graduated for 0.002 mm per interval
  • Large mechanical stage, 120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm. Double nonius, readable in 0.1 mm. Detachable slide holder.
  • Zernike Phase condenser, medium dark. N.A. 1.25 with rotating disc and 4 phase rings and aperture for bright field. In centrable holder, with iris diaphragm and filter holder with neutral filter and blue filter. Vertical adjustment by means of control knob
  • Packed with dust cover, filters, tools, immersion oil and tools in styrofoam case

  • Built-in halogen 6 volt 20 watt illuminator with neutral filter. Light intensity adjustable with thyristor control. Built-in 230 volt transformer
