Nº de producto: 19884

Microscopio trinocular HPM 230 PL

Rojo
Este producto ya no está disponible + Tiempo transporte

No es posible la entrega antes de Navidad
Ver alternativas disponibles o pedir un cupón de vales!


Descripción del producto

Más información sobre la serie HPM...

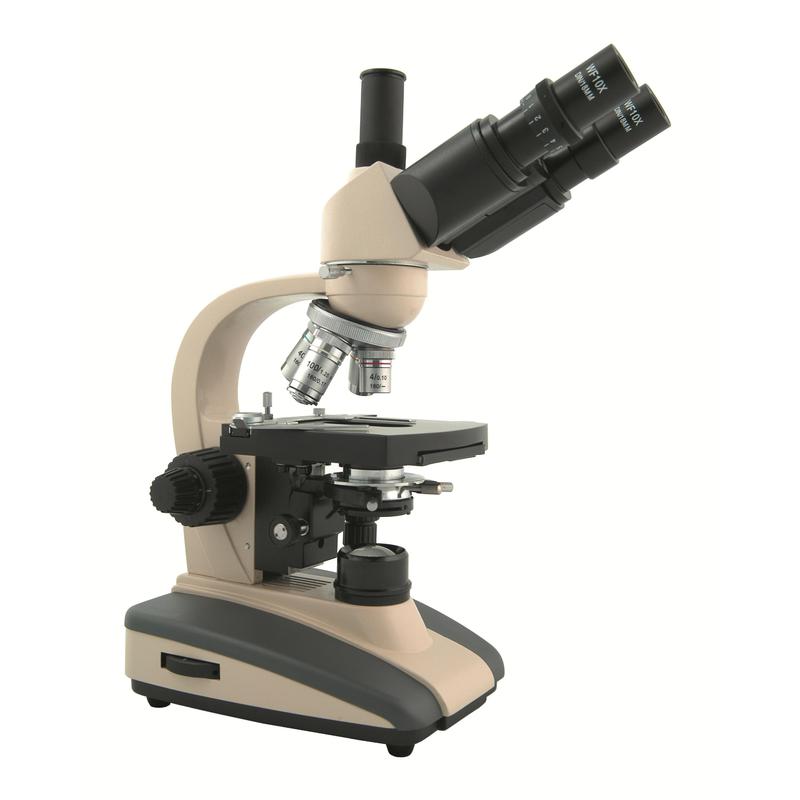

HPM 230 trinocular microscope with cold light illumination sophisticated design with cold-light illumination and 4-fold turret object. The cold light illumination enables longer viewing without heat to the product. Binocular microscope with metal stand and coarse and fine drive.
Tripod / insight: Modern, stylish Ganzmetallstativmit DIN - working column (160 mm)
With DIN optics, 4-way rotation to focus nosepiece Binocular 30 ° viewing angle, side head 360 °: Coaxial fine drive and coarse mitRutschkupplungObjektive: Included achromatic DIN Objektive4x / NA0, 10 10x / NA0, 2540x / NA0, 65 100x / NA 1.25 ( 40 oil) and 100 with PräparatschutzOkulare: 10x wide-angle (pair) Magnification: 40 to 1000 times (expandable) Condenser: Abbekondensor NA 1.25 height adjustable with rack and pinion, and with built-in iris diaphragm Stage: With built-in mechanical stage and low coaxial controls Lighting: Fluorescent PL-5W ( lamp life minimum 5000 hours)
Delivery:
with dust cover, immersion oil

Especificaciones

Sistema óptico


Iluminación
Luz transmitida
Tipo de lámpara
-
Aumento
100x
Tipo de objetivo
Acromático
Escala de representación
100x
Ocular
10x/18mm Weitfeld

Mecánica


Tipo de construcción
Trinocular
Postura de observación
30° visión angular
Enfoque
Movimiento bruto y fino

Peculiaridades


Cámara digital integrada
-
Alojamiento de filtro
-
Diafragma de campo luminoso
-
Mesa de centrado
-
Servicio con acumulador eléctrico
-
Bolsa protectora contra polvo

En general


Serie
HPM

Campo de aplicación


Enseñanza

Aplicaciones


Contraste de fases
-
Campo oscuro
-
Polarización
-
Fluorescencia
-
Contraste de interferencias
-
Metalurgía
-

Seguridad productos

Fabricante: Windaus-Labortechnik GmbH, Bauhofstraße 9, 38678 Clausthal-Zellerfeld, DE, www.windaus.de
