Lupa estereo DM-39C-N9GO

DM39

Unique design Motic

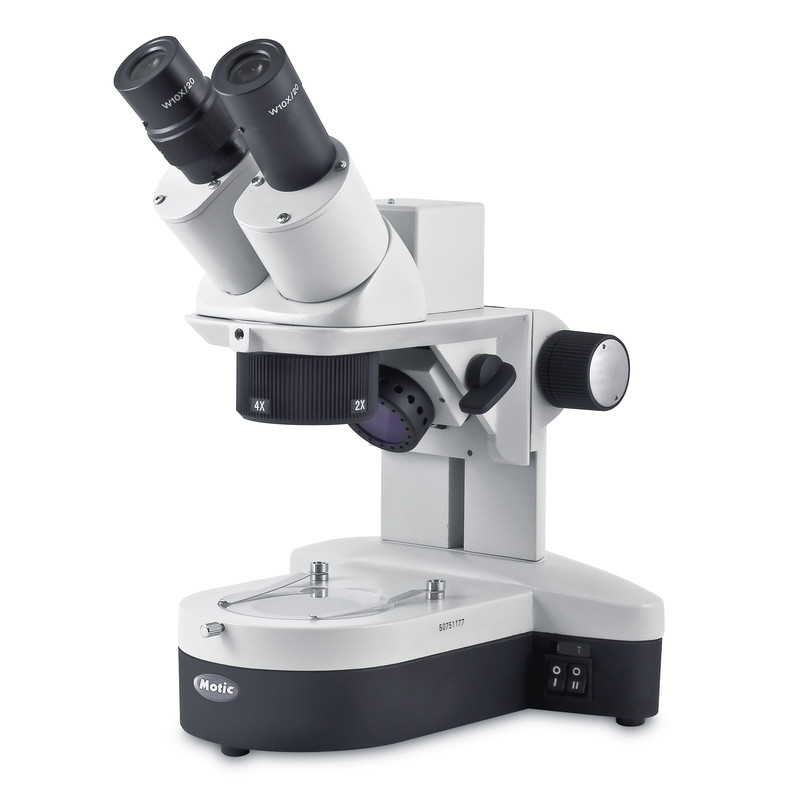

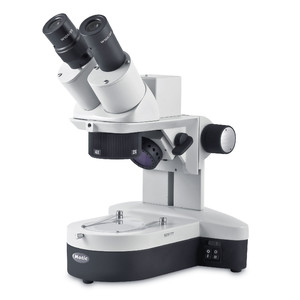

The stable fixed arm stand with an integrated incident and transmitted light illumination makes the DM-39 the ideal and safe student microscope. With a resolution of 3.0 Megapixel integrated digital camera creates crisp images. The drehbareObjektiv changer with a 2x / 4x magnification allows a maximum magnification of 20x and 40x. Once the DM-39C-N9GO is connected to the computer, are countless possibilities of image capture, processing and archiving using the software Motic Images Plus 2.0.

specification

• Binocular, 45 ° viewing angle with an integrated digital camera with 1/2 "CMOS chip
• 2048x1536 pixels with USB2.0 output
• Widefield eyepieces WF 10x / 20mm
• Rotating lens changer type C (2x, 4x)
• Coarse, adjustable
• Stable fixed arm Tripod
• Halogen incident illumination 12V / 10W
• Tungsten Transmitted illumination 12V / 10W
• Power Supply 100V-240V, VDE plug (CE)
• Software Motic Images Plus 2.0 for PC and MAC
• Kalibriemaßstab
• Table Stakes black / white & frosted glass, dust cover
