Generador de luz fría CLD-01, sistema de extraalta eficiencia 14 W X-LED

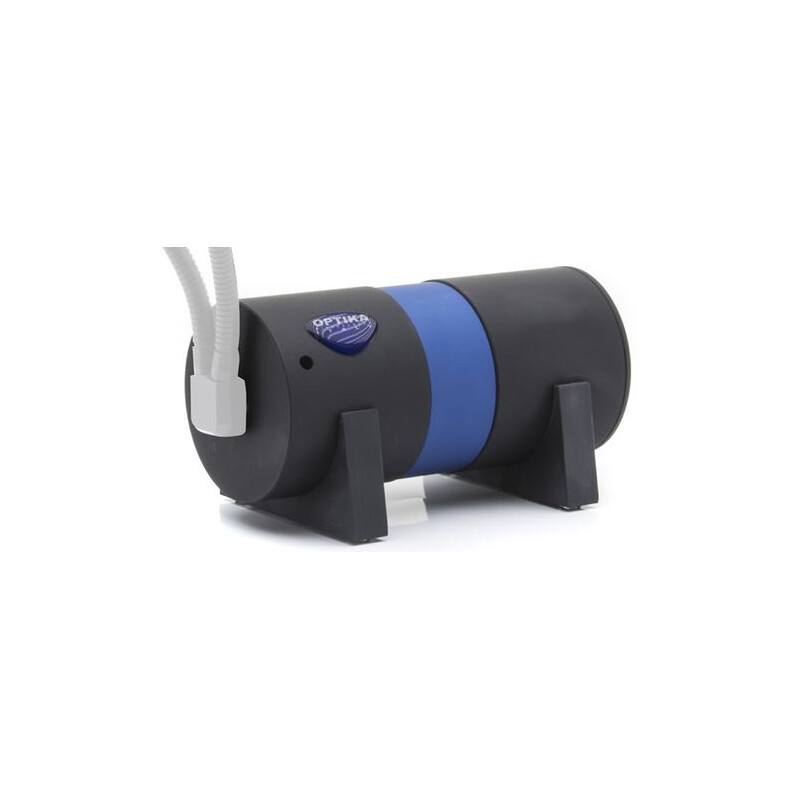

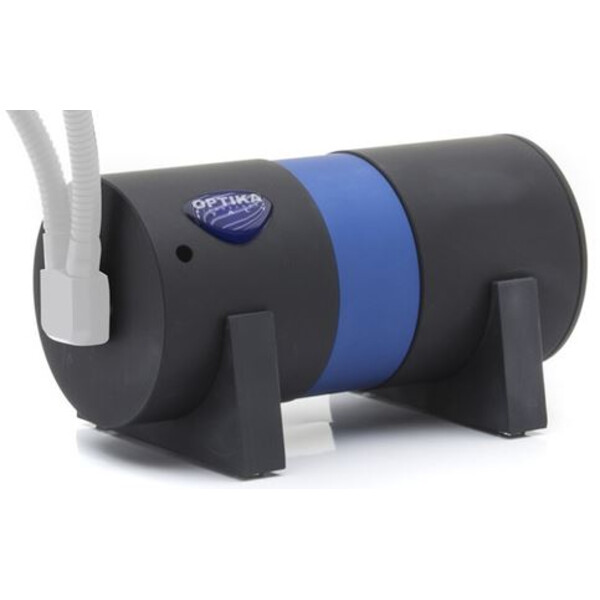

Cold Light Source CLD-01

Specification

Light source: High power 14W LED

Chromaticity coordinates (x,y): 0.320, 0.320 (pure white)

Optical power (with double-arm option): Illuminance (at 10 cm distance): 70000 lux

Power supply: Brightness control potentiometer. External power supply provided. Input: 110/240 Vac 50/60 Hz; output: 6 Vdc 5A

Dimensions: Length: 200 mm Width: 120 mm Weight: 4,1Kg

Accessories: The output can be coupled to the following accessories: CL-11.1: Double-arm optical fiber guide with focusing lenses. Arm length 500 mm.

Optional lenses for arms: CL-17: Focusing lens(pair) with built-in polarizer filter. CL-12: Ring optical fiber guide, guide length 700 mm. Guide diameter 16 mm. Diameter of the fixing ring: 55mm. The circular end is suitable for all stereo series.
