Howie Glatter Holographic Attachment for Laser Collimator - Concentric Circle Pattern

Nº de producto: 45972
Fabricante: Howie Glatter

$ 194,00

IVA incluido
más gastos de envío

¡Envío express disponible hasta mañana, 19.05.2021!

¿demasiado caro?

listo para envíar en 24 h

+ Tiempo transporte
Howie Glatter Holographic Attachment for Laser Collimator - Concentric Circle Pattern
Howie Glatter Holographic Attachment for Laser Collimator - Concentric Circle Pattern
Descripción del producto
Especificaciones
Opiniones de clientes
Accesorios recomendados

Descripción del producto del fabricante:

La descripción de este producto no está disponible en español. Esperamos que la versión en inglés le sea de utilidad. En cualquier caso, sentimos las molestias.

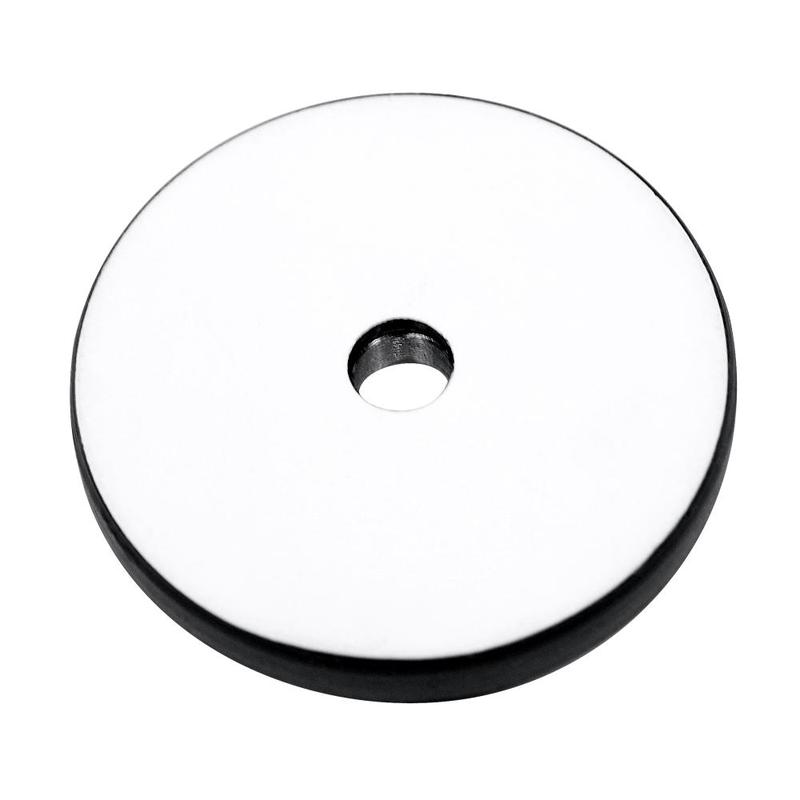

Optional holographic attachments screw into the laser aperture and have a white screen front surface. They contain an optical element that diffracts most of the laser light into a diverging symmetrical pattern around the central beam. The projected pattern is useful for centering optical elements by making it symmetrical with the edge of the optic.

Three different patterns are available:

  • A 10 x 10 line square grid pattern is supplied as standard unless otherwise requested because it is the widest pattern. It spreads 21 degrees which allows centering of optics as fast as f/ 2.7. This pattern is recommended for general use because it can be used with the fastest telescopes likely to be encountered.
  • A nine-concentric circle pattern is available that spans 10 degrees and will reach to the edge of f/ 5.7 optics. This pattern is recommended for scopes around this focal ratio or slower. Because the laser light is spread over a smaller area it is brighter than the square grid pattern, and this makes it particularly useful with Cassegrain scopes, where the pattern impact is sometimes scrutinized on the mirror surfaces. The projected pattern is seen only by light that is scattered from dust, dirt, or optical roughness, so a brighter pattern is better, especially if the mirrors are very clean.
  • A cross-hair and circle “scope” pattern is available that spans 10 degrees. It has utility for non-Barlowed , conventional Newtonian primary collimation, where the primary is adjusted to return the reflected central laser beam back into the laser aperture of the collimator. The cross-hair intersection makes it easier to see when the return beam is centered on the collimator face.

Comentario de nuestros expertos:

La descripción de este producto no está disponible en español. Esperamos que la versión en inglés le sea de utilidad. En cualquier caso, sentimos las molestias.

This is the new version ("NV") with coarse thread. The attachment fits all Howie Glatter/Starlight Instruments laser collimators, which also have a new thread ("NV" in the item number). If you own an older version of the laser (before 2020), please contact us prior to your order!

(Jan Ströher)
