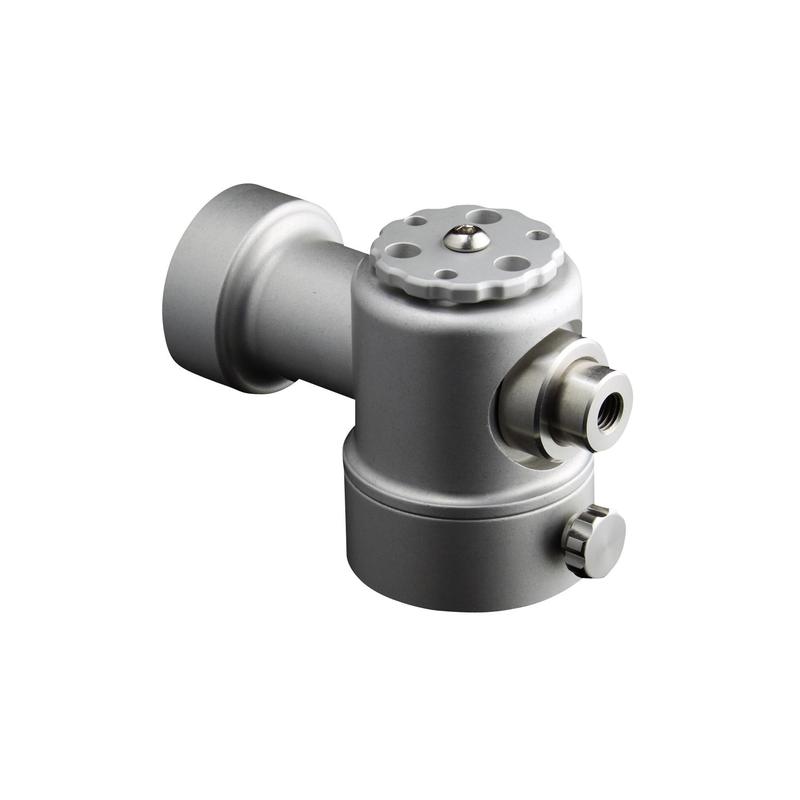

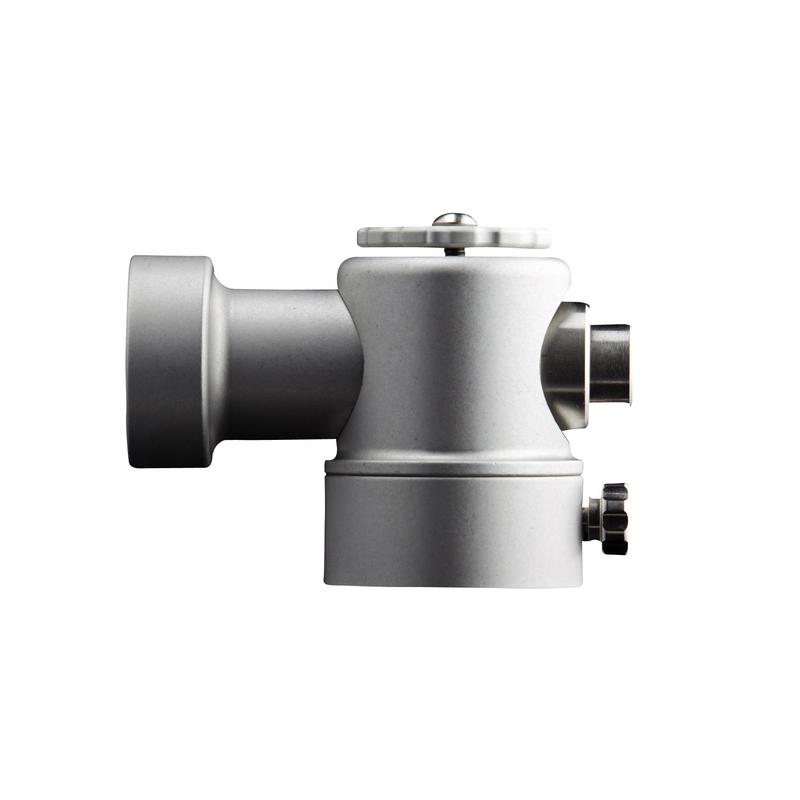

The ultra compact TH3010 makes it easy to mount telescopes on your TT320X. Carrying up to ten times its own weight, framing the perfect shot is easy with the TH3010.
Rock Solid
For maximum rigidity, the TH3010 is quickly mounted to the TT320X with three supplied 4 mm stainless steel screws. Alternatively, if you want to do a bit of visual observing, you can simply mount the TH3010 straight onto your camera tripod using the 3/8 inch camera threaded hole in the base.
Easy Framing
Tight machining tolerances ensure you'll enjoy silky smooth motion in both axes as you frame your target for the perfect shot. Specially made stainless steel and aluminium locking knobs with fine pitch aerospace threads provide secure locking when carrying large loads.
Telescope Connection
A wide variety of telescope mounting plates can be attached to the TH3010 including the popular Vixen and Losmandy quick release dovetail systems.
Tripod and Pier Compatible
The TH3010 is perfectly matched to the AstroTrac Travel System and can also be used with any photo tripod equipped with a standard 3/8" photo thread.
Ultra compact and lightweight
Thanks to its compact size, the TH3010 can be easily carried in your airline luggage. Get your holiday or vacation off to a great start by avoiding costly excess baggage charges. Weighing just 4 kg (8.8 lb), of which 2 kg (4.4 lb) is the counterweights, you'll be pleasantly suprised by how little space and baggage allowance your TH3010 takes up.
Beautifully Engineered
The silky smooth anodised aerospace alloy is perfectly complimented by the unique polished AstroTrac stainless steel knobs. You can be confident that the all stainless steel counterweight bar and counterweights will give you many years of corrosion free reliability and handling pleasure. The TH3010 is manufactured with loving care by highly skilled engineers at AstroTrac's factory in the UK using state-of-the-art CNC machinery.
Specifications:
- Load capacity: 22 lb (10 kg)
- Head only weight: 2.2 lb (1 kg)
- Head height: 3.5'' (90 mm)
- Tripod mounting thread: standard photo 3/8'' 16 tpi
- TT320X mountint screws: 3x 4mm x 12mm
- TH3010 scope mounting: 2x metric 6mm threaded holes at 35mm centres
