Filtro > Ruedas & desplazadores de filtro > Atik > EFW2.2 > Atik Rueda de filtros EFW2.2, 7x36 mm, sin montura
Nº de producto: 47489

Rueda de filtros EFW2.2, 7x36 mm, sin montura

PVP: $ 890,00 Nuestro precio:
$ 700,00 IVA incluido, más gastos de envío
¿demasiado caro?
Rojo
Este producto ya no está disponible + Tiempo transporte

Descripción del producto

La descripción de este producto no está disponible en español. Esperamos que la versión en inglés le sea de utilidad. En cualquier caso, sentimos las molestias.

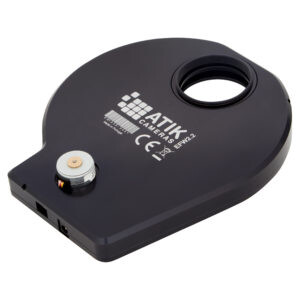

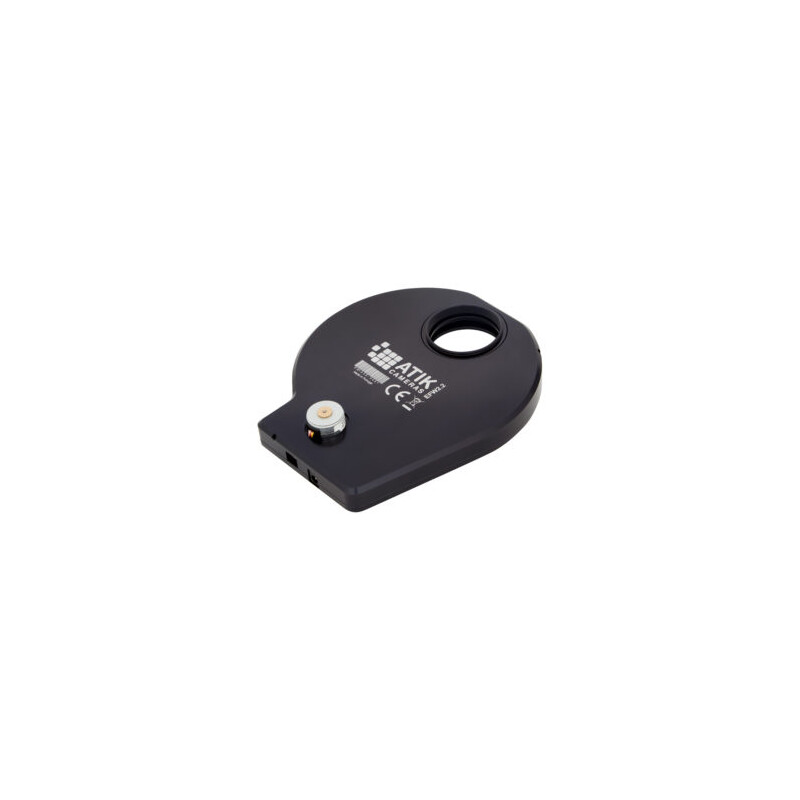

Electronic Filter Wheel to add colour to your images


An upgrade on it's predecessor, The Atik EFW2.2 features a new mechanical location system for indexing the filter. This ensures that filters are always in precisely the same position which is of great benefit for flat field framing. Ensuring that flat field frames display exactly the same optical characteristics is essential to ensure that anomalies such as dust can be handled and removed accurately.

The EFW2.2 also features a slick design, with a slim and lightweight profile. For example, the distance between any Atik camera and the wheel itself is 0mm, while still maintaining the possibility of rotating the camera to any desired position.

Total extra backfocus to accommodate the EFW2.2 is only 22mm. Of special interest to Atik 383L+ users is the short distance from the filters to the CCD. This means that popular 1.25" filters can be used with this sensor down to f/5, without any relevant vignetting.

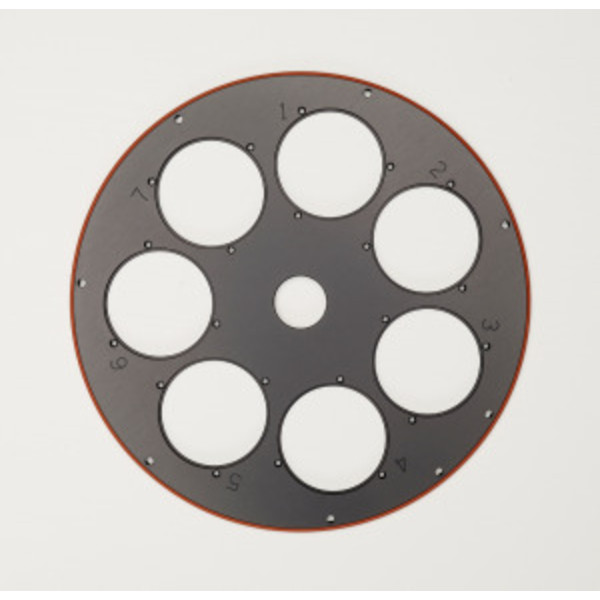

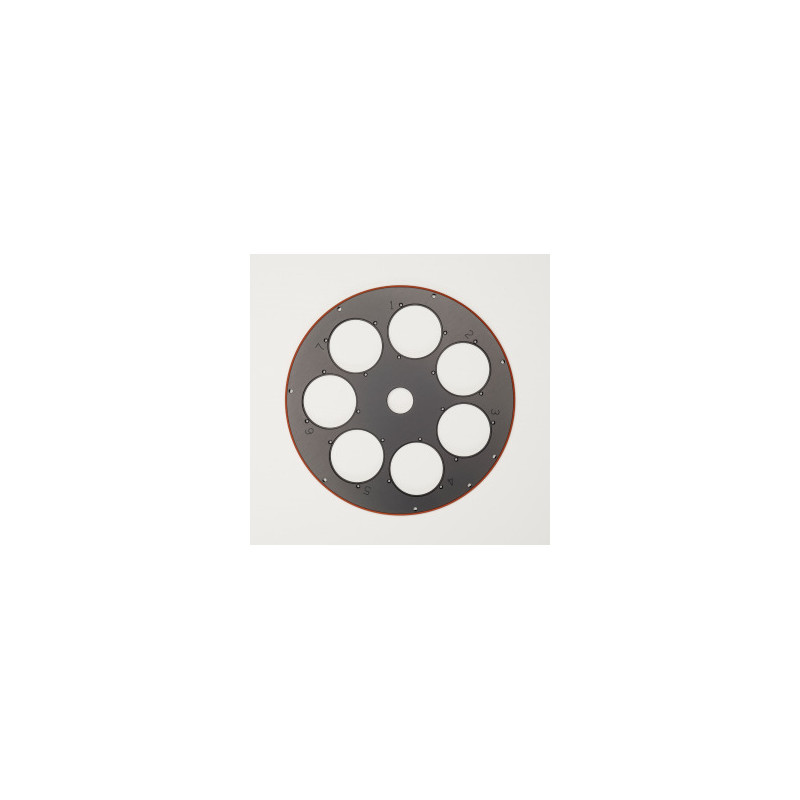

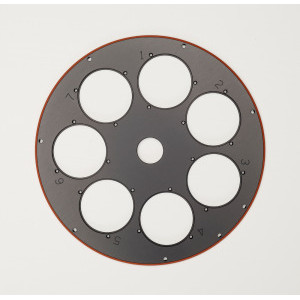

Filter disk options include 5x50.8mm, 5x2” mounted, 7x36mm and 9x1.25” mounted. Regarding software, the EFW2.2 has an ASCOM compliant driver, so that any compliant software can control it. Additionally, the EFW2.2 can be controlled using our Artemis Capture software, for easy, simple and efficient operation.

The EFW2.2 is supplied with your choice of carousel and separate carousels are also available to allow users to change.

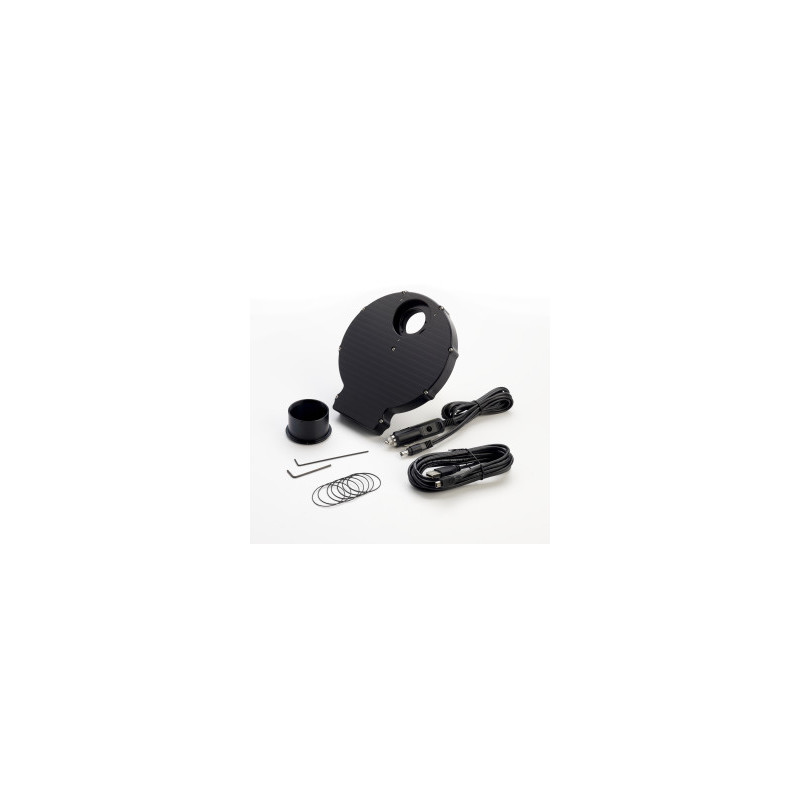

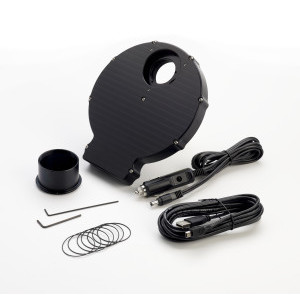

What's in the box?

  • EFW2.2 body with your choice of filter disk
  • 2" adapter
  • Hex key kit
  • Screws, plastic washers and o-rings (with specific disk options)
  • 3-metre USB cable
  • 1.8-metre battery power connector
  • CD-ROM with drivers, software and Manuals (PDF)
  • User's Manual (paper)

Please note - when using the 2" model of the EFW2.2 with the Atik 16200, an additional ATK 0081 M54 adaptor is required to couple the wheel to the camera.

Especificaciones

Capacidad


Interfaces
Mini USB
Fuente de alimentación
12
Consumo de energía eléctrica (mA)
300
Sistema soportado de servicio
Windows 10/Vista/Win7/Win8 (not RT)
Conexión (lado de telescopio)
2"
Conexión (lado de cámara)
2"
Longitud óptica (mm)
22
Alojamiento de filtro
36mm
Cantidad máxima de filtros a montar
7

Equipo


Funciona por motor

En general


Serie
EFW2.2
Peso (g)
500
Tipo
Filtro
Tipo de construcción
Rueda de filtros
Atik Rueda de filtros EFW2.2, 7x36 mm, sin montura
Atik Rueda de filtros EFW2.2, 7x36 mm, sin montura
Atik Rueda de filtros EFW2.2, 7x36 mm, sin montura
