euro EMC Columna Mástil de observatorio P200, altura total de 100 cm

Nº de producto: 47105
Fabricante: euro EMC

$ 1.170,00

IVA incluido
Las siguientes versiones de este producto están disponibles:
Altura (cm) Precio
65 $ 1.030,00
80 $ 1.070,00
100 $ 1.170,00
120 $ 1.310,00
140 $ 1.530,00
euro EMC Columna Mástil de observatorio P200, altura total de 100 cm
euro EMC Columna Mástil de observatorio P200, altura total de 100 cm
euro EMC Columna Mástil de observatorio P200, altura total de 100 cm
euro EMC Columna Mástil de observatorio P200, altura total de 100 cm
Descripción del producto
Especificaciones
Opiniones de clientes
Accesorios recomendados

Descripción del producto:

La descripción de este producto ha sido traducida por un ordenador. Para más información, por favor contacta con nuestro personal de atención al cliente.

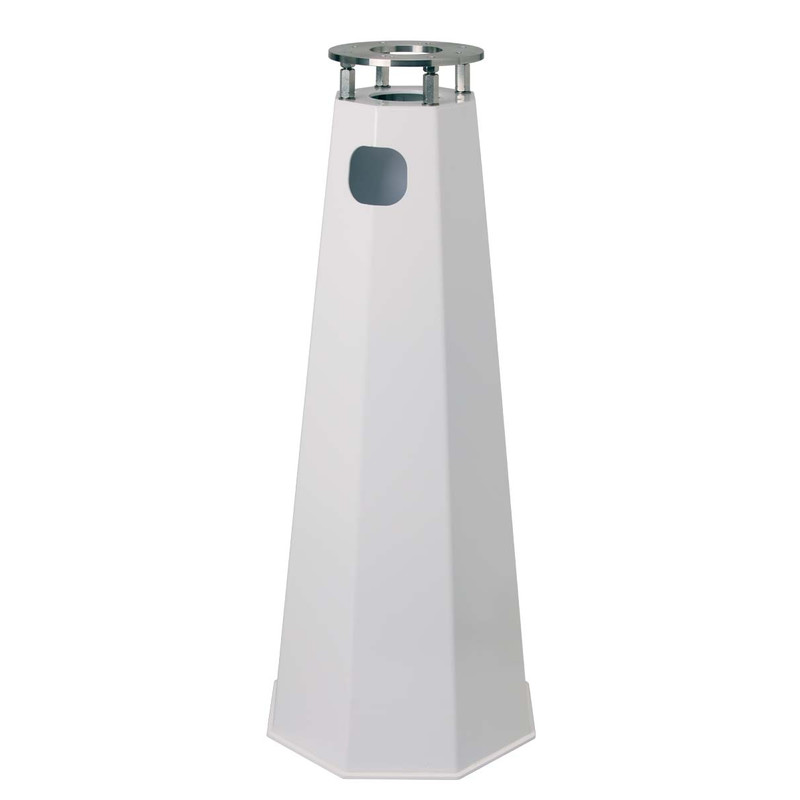

The Observatories column P200 is designed with its pyramid shape at high load carrying capacity.

At the top of the pyramid has a cross section which corresponds to a circular pipe with 200mm diameter, hence their name. In the lower part, where the active forces are the largest, has grown in the execution of similar diameter 1000mm already on 400mm. The stiffness follows the third power of the diameter; is on 400mm diameter had grown so for example a steel pipe diameter of 180mm and 10mm wall thickness already superior by a factor of 3 to 4!

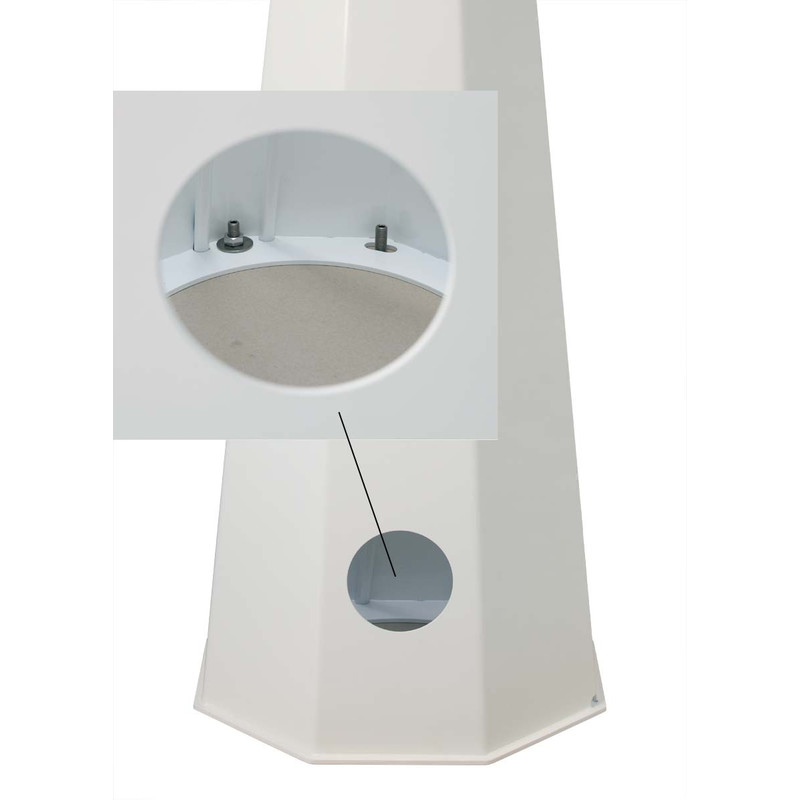

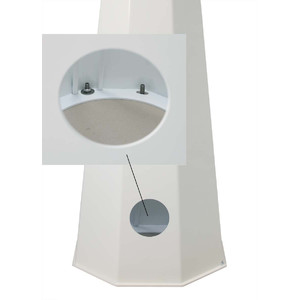

Any stationary column reaches its theoretical rigidity only with ideal floor anchoring. This fact is rarely given due attention and it is with a screw also not very easy to reach. The pyramid shape with its large surface area and the matching anchor sets provide optimum solutions for this issue Euro-EMC offers two different anchoring phrases.:

  • Anchoring kit 1 for existing concrete surfaces
  • Anchoring kit 2 is when newly concreted

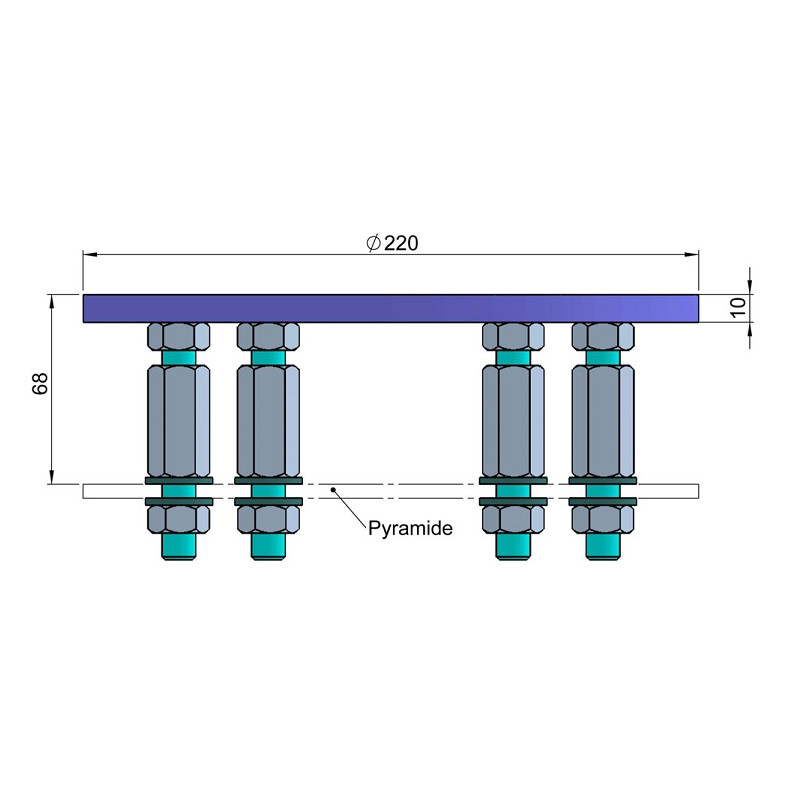

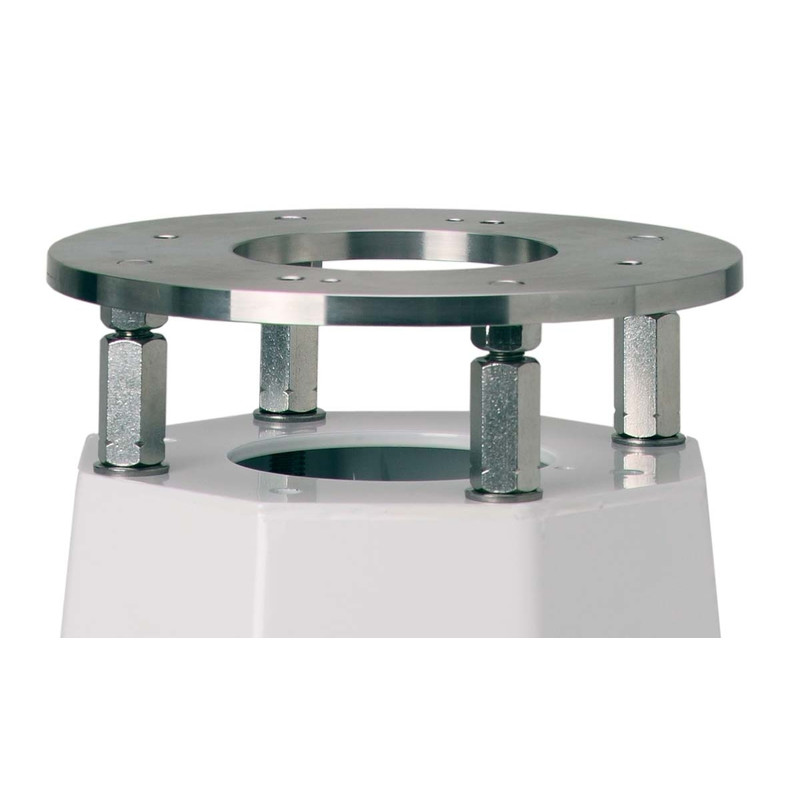

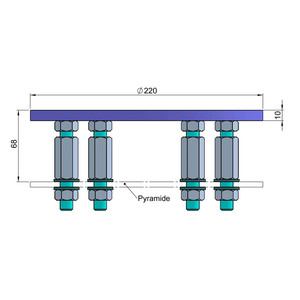

The Observatories column P200 is made up of the two assemblies "Pyramid" and "Pyramid Head". On the pyramid head you can then attach the matching to your mount adapter. For the Observatories column P200 same adapter can be used as for the column stand S130 of euro EMC
