Descripción del producto

La descripción de este producto no está disponible en español. Esperamos que la versión en inglés le sea de utilidad. En cualquier caso, sentimos las molestias.

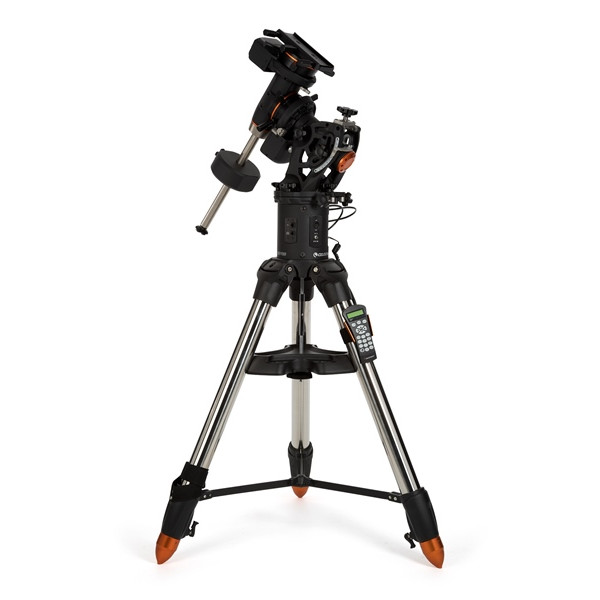

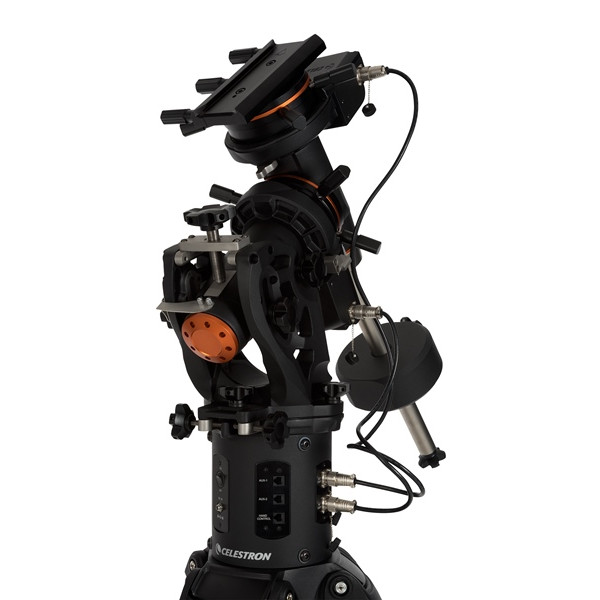

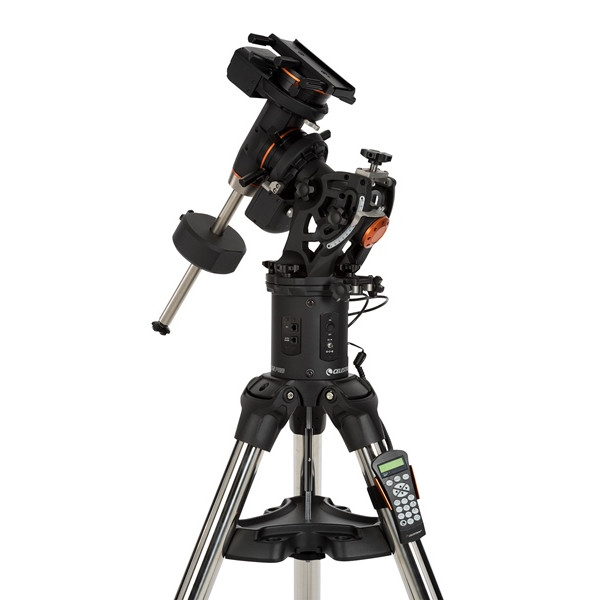

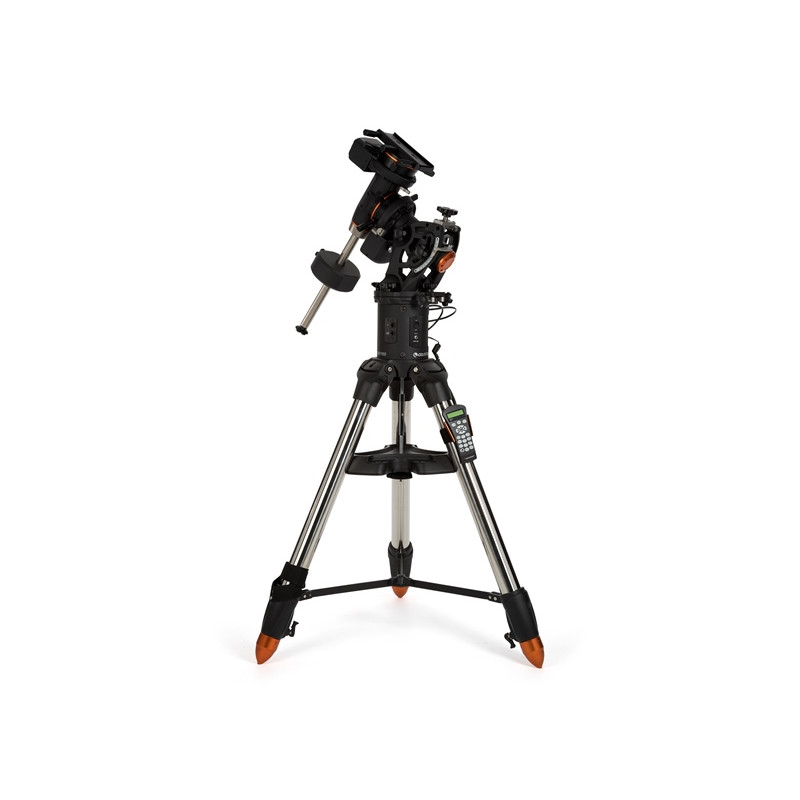

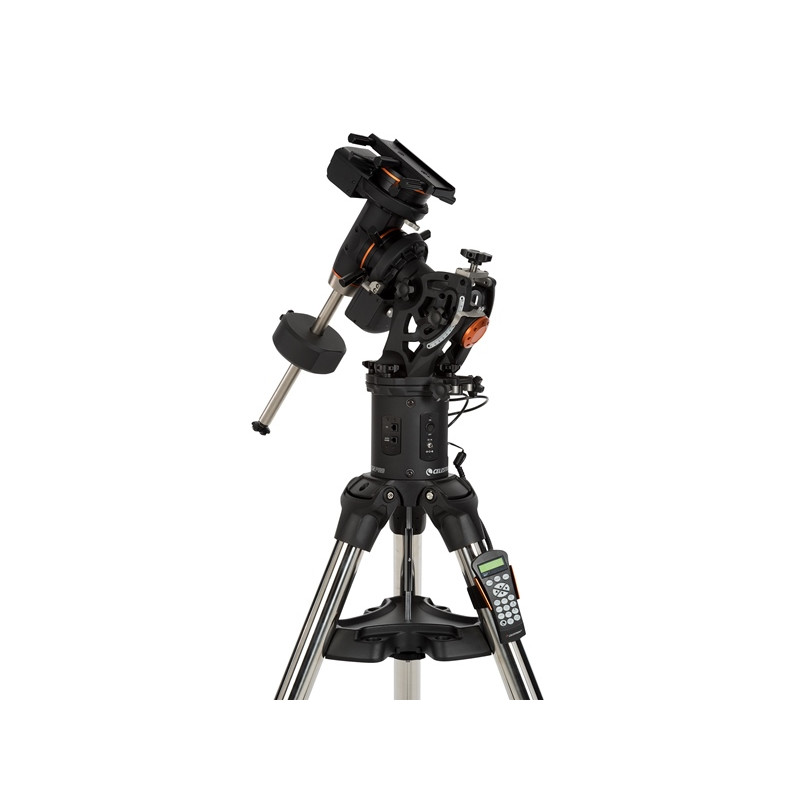

In addition to being fully computerized with a database of over 40,000 celestial objects, the New CGE Pro German Equatorial mount has been completely redesign to offer numerous design advantages for the Astrophotographer:

  • Increased Payload Capacity
    Able to hold our 14" SCT telescope more securely as well as larger optical tubes up to a maximum payload of 90lbs.
  • All-Star Polar Alignment
    Choose any bright alignment star for a software assisted alignment of the mounts polar axis that will have you ready for imaging even if you can't see the North Star.
  • No-Tool polar alignment
    Larger hand knobs for both Altitude and Azimuth adjustments.
  • Meridian Tracking
    Extended tracking past the Meridian of up to 20 degrees of uninterrupted imaging through the best part of the sky.
  • Faster slew speed
    Improved gearing and motors provide faster slew speeds than ever before with a maximum slew rate of over 5°/per second.
  • Power Management
    Redesigned electronics deliver constant regulated power to the motors making them capable of driving the telescope even when not perfectly balanced. This allows the CGE Pro to have the payload capacity of that of much larger (and expensive) mounts without sacrificing smooth tracking motion and pointing accuracy across the entire sky.
  • Accuracy
    The hallmark of any telescope mount is its ability to find, center and track celestial objects with the highest degree of accuracy.
  • Pointing
    With just a standard hand control alignment, CGE Pro has the ability to center a star in your eyepiece or ccd chip to within 5 arc minutes. Using NexStar's advanced pointing features such as Calibration Stars, Sync and Precise GoTo, further improves the pointing accuracy to as low as 1 arc minute in the desired region of the sky.
  • Tracking
    With larger .75" pitch diameter worm, precision made cut-steel gears in gearboxes, and seven slot skewed armature motors the CGE Pro delivers typical tracking performance of +-9 arc seconds, which can be further reduced with the mounts permanent periodic error correction (PPEC).
  • Mount Modeling
    Celestron's NexStar hand control has built-in mount modeling features essential for accurately placing small objects on the center of your ccd chip or high power eyepiece. Aligning on multiple Calibration Stars creates a mathematical model of the opto-mechanical inaccuracies inherent in all equatorial mounts. This model is stored within the hand control and is used to compensate for these inaccuracies thus improving your pointing precision each time you slew your telescope.
  • Portability
    Set up and transportation of the CGE Pro telescopes is made easy by separating the mount into smaller, easy-to-carry components. Unlike fork arm mounted telescopes, the CGE's optical tubes can be quickly removed from their mounts making even the CGE Pro1400 easily assembled in minutes.
  • Stability
    Recognized for superior stability, German Equatorial mounts place the center of gravity directly over the tripod legs and can be easily polar aligned without the use of an optional equatorial wedge. This proven design reduces the "tuning fork" vibration that can be associated with undersized fork mounts. An improved Super HD Tripod supports the CGE Pro mount. This fully extendable tripod is made from the finest 2.75" stainless steel and can be raised to a height of 55". The tripod uses a dual leg support for maximum rigidity with an upper leg brace to provide an outward preload and a lower leg brace providing inward tension.
  • Balance
    CGE Pro equatorial mounts can easily be balanced in both axes. Simply sliding the counterweight for Right Ascension and moving the optical tube along its dovetail mounting for Declination accomplish balancing the weight of camera equipment and other visual accessories. This means that no additional weight needs to be added to balance the telescope when additional accessories are added.
  • Clearance
    CGE Pro mounts support their tubes at a single contact point allowing the tube to move freely around its polar axis without making contact with the telescope's mount. Software features allow the user to set the mounts slew limits to guaranty safe motion. This is particularly useful when adding photographic and CCD instruments that extend from the rear of the telescopes.

All CGE mounted telescopes are compatible with Celestron's CN-16 GPS accessory. Combine the GPS and built-in real time clock and these telescopes will keep track and remember their exact location and time without having to enter the information into the hand control.

Especificaciones

Capacidad


Denominación
CGE Pro
Carga adicional máxima (kg)
41
Ajuste de altura de polo (°)
10-65
Velocidades de motor
64, 16, 8, 4, 1, 0.5
Exactitud de seguimiento
+/- 9
Material de rueda helicoidal
Acero
Material de rueda helicoidal
Latón
Soporte de ejes
Rodamiento de rodillos cónicos
Contrapeso(s)
1
Software
NexRemote
Base de datos
40000
A definir
100
Interfaces
Aux, Autoguider, RS-232
Fuente de alimentación
12
Tipo de motor
Servomotores
Caballete de montura
Losmandy-Style
Ruta de cable
externo
Peso (g)
34.000
Lenguaje
alemán, inglés, francés, español, italiano, ruso

Peculiaridades


Sistema GoTo
Acercamiento según coordenadas
GPS
-
Puede controlarse vía PC
sí (RS-232)
Con posibilidad de actualizar por internet
Soporte para accesorios

Equipo


Trípode
Trípode

Trípode


Soporte de columna
-
Altura máxima de trípode (cm)
140
Peso de trípode (kg)
24
Material del trípode
Stahl

En general


Peso total (kg)
70
Color
negro
Serie
CGE Pro

GoTo


Proceso de alineación
2-Star Align, Quick Align, 1-Star Align, Last Alignment, Solar System Align
Software
NexStar
Base de datos
40000
GPS
opcional
Idioma del sistema GoTo
en varios idiomas

Accesorios recomendados

Accesorios para telescopios > Cables y fuentes de alimentación (7)
Fuente energética

Baader Fuente de alimentación para exterior 60 W / 12,8V / 5 A

$ 74,00*
Monturas & accesorios (5)
Contrapeso

Celestron Contrapeso de 10kg para CGE PRO

$ 183,00*

*Todos los precios incluyen IVA y gastos de envío.

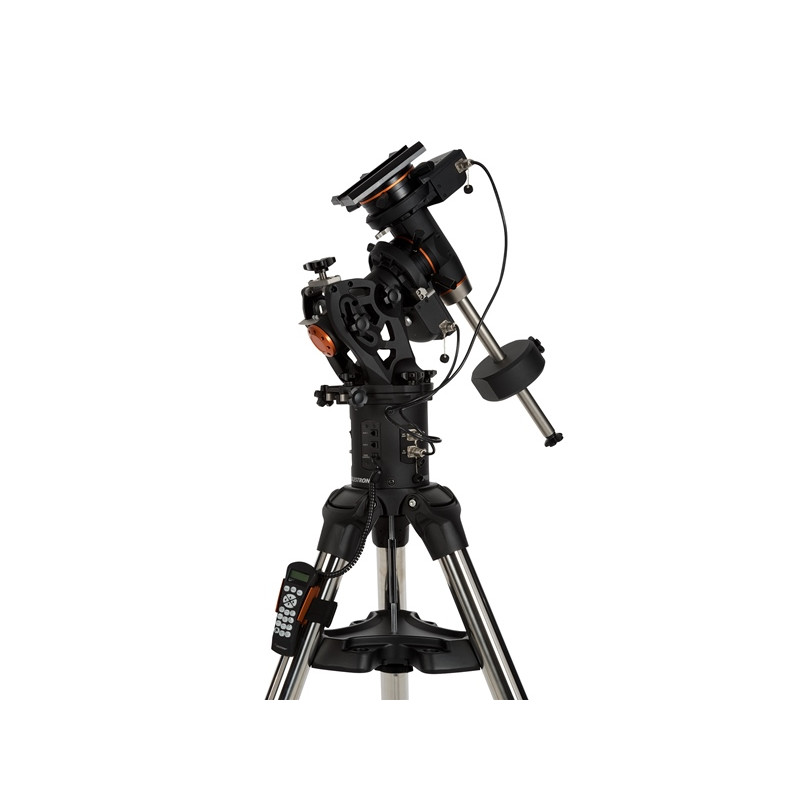

Celestron Montura CGE Pro

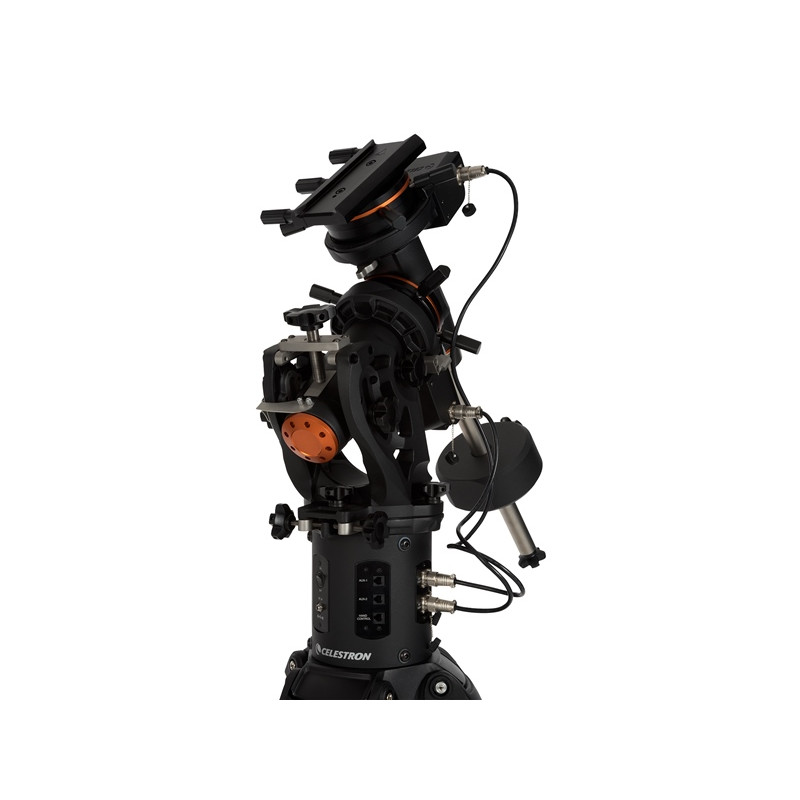

Celestron Montura CGE Pro

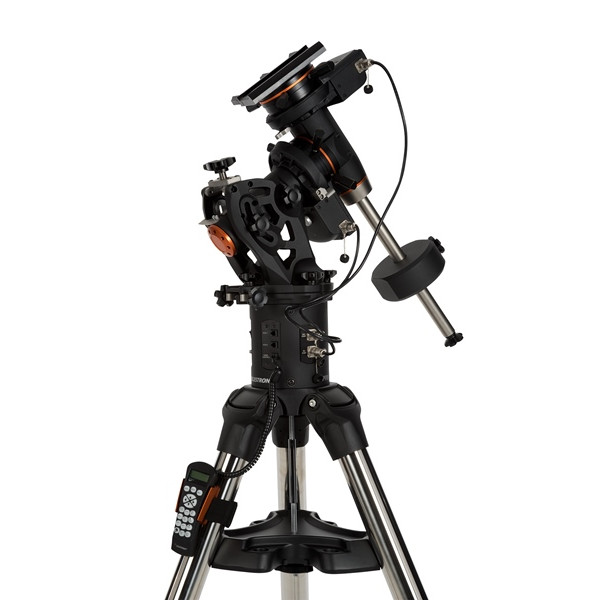

Celestron Montura CGE Pro
