Trípode de madera Report 923

The Modular Report Tripod System: The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components.

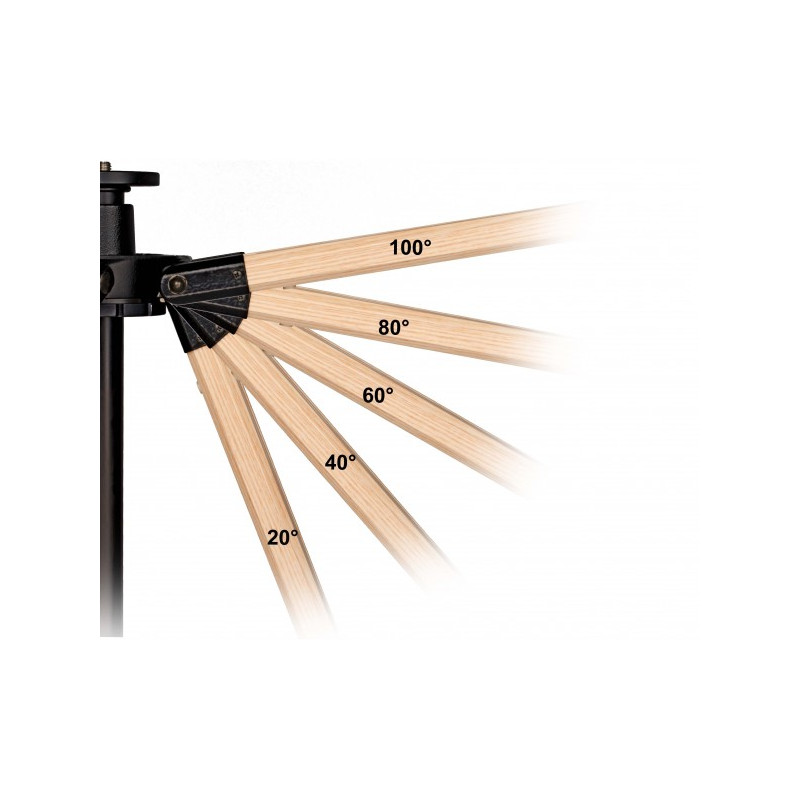

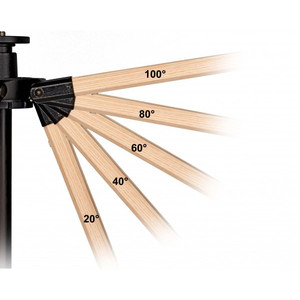

Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

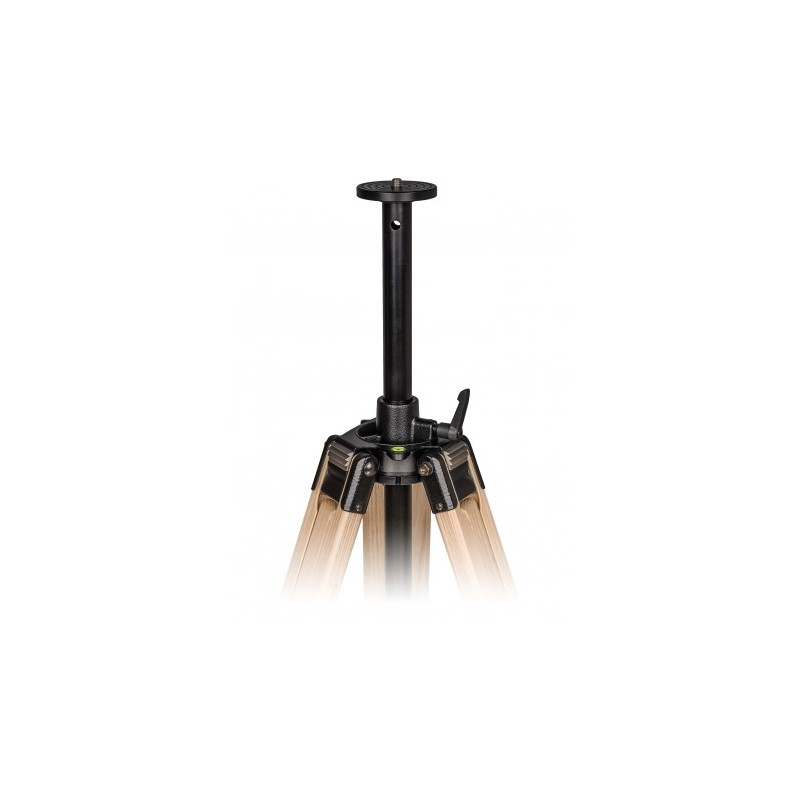

The tripod is equipped with the module insert 2, i.e. with a centre column which has a length of 50cm and a diameter of 25mm, made of precision-drawn light-metal tubing which ensures an easy height adjustment. The support plate made of aluminium has a diameter of 68mm and is equipped with a fixed fastening screw (standard: 1/4", optional: 3/8") as well as three locking screws which secure the mounted system against unintentional loosening.
