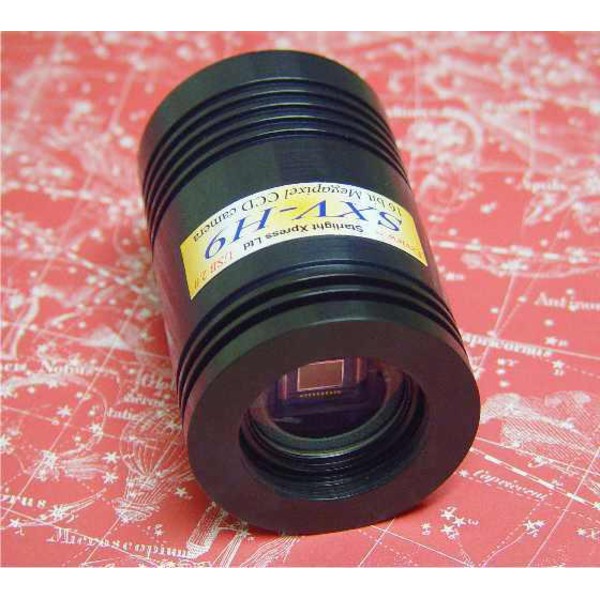

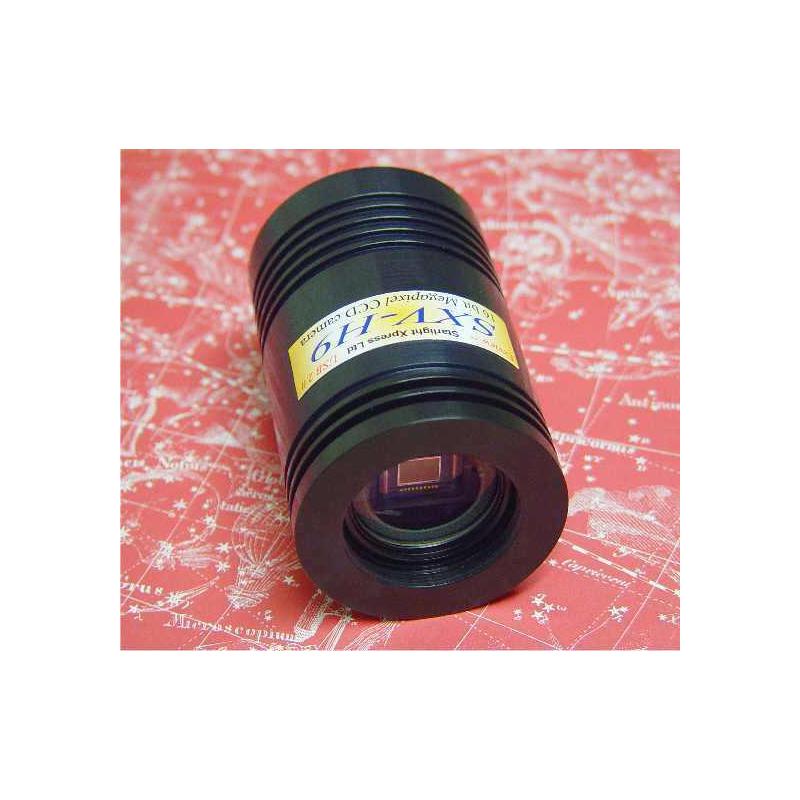

Cámara CCD monocromática SXVR-H9

$ 1.880,00 IVA incluido más gastos de envío
¿demasiado caro?
Rojo
Este producto ya no está disponible + Tiempo transporte

Descripción del producto

La descripción de este producto no está disponible en español. Esperamos que la versión en inglés le sea de utilidad. En cualquier caso, sentimos las molestias.

SXVR-H9

  • Large, high resolution 'Exview' CCD chip, with 1,447,680 x 6.45uM pixels in a 9 x 6.7mm array

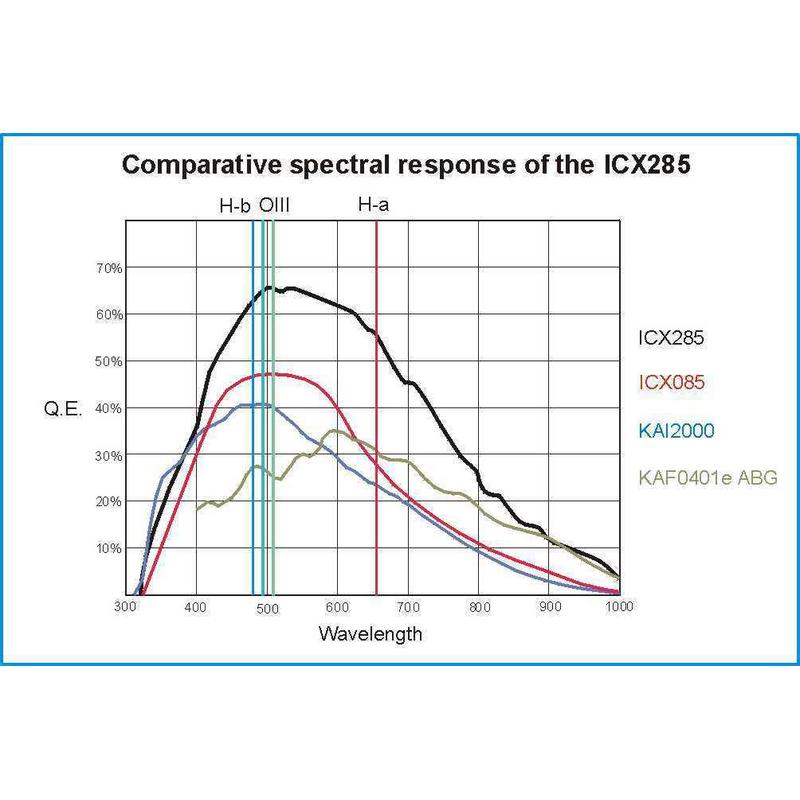

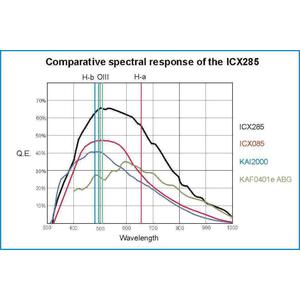

  • Exceptionally high QE over an extremely wide spectral range from near UV to deep IR
  • Exceptionally low dark signal - No dark frames necessary for most deep sky objects
  • Exceptionally effective anti-blooming with minimal effect on linearity and no lost active area

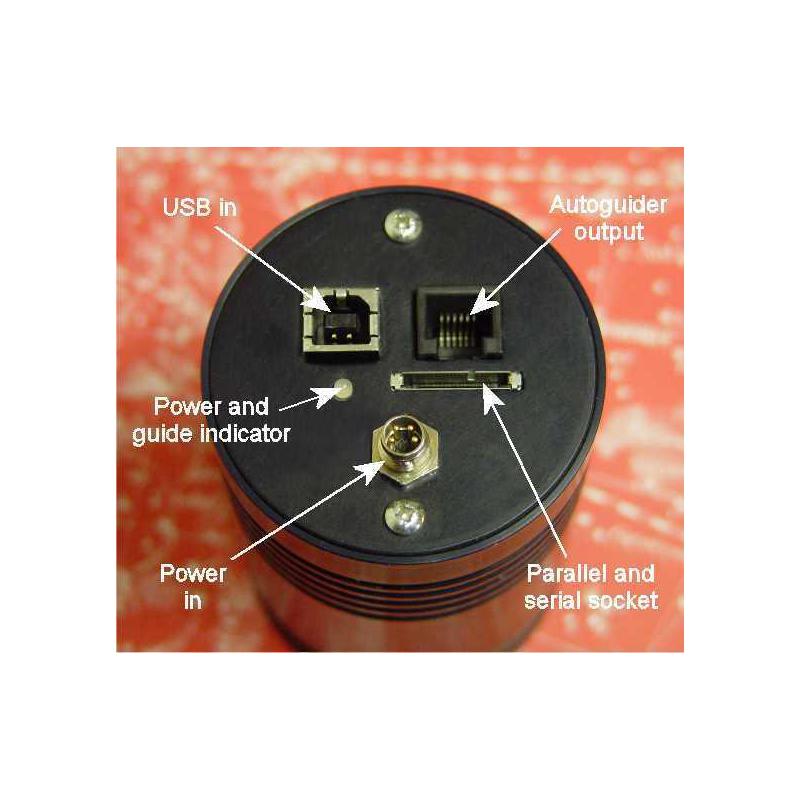

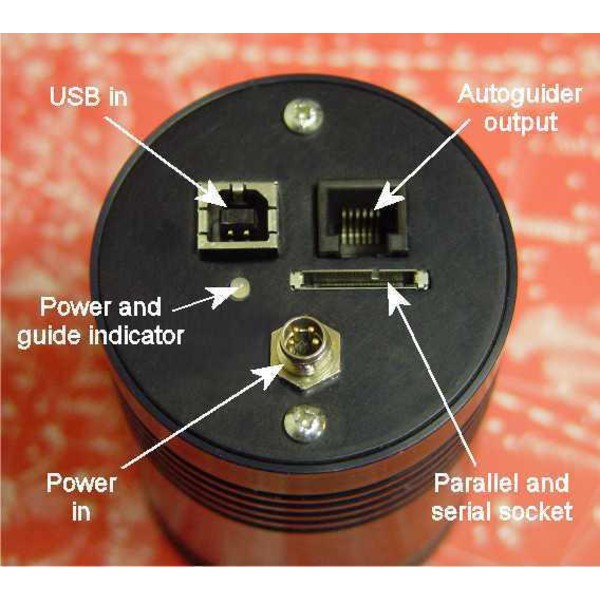

  • Built-in very high speed USB 2.0 interface for sub-1 second downloads
  • Built-in autoguider interface and output - compatible with the optional dedicated external guide camera
  • Built-in dual serial ports for accessory control - directly drive filter wheels, GOTO 'scopes etc.
  • Single USB cable control for all features - get rid of that dangerous cable tangle!
  • Only ONE computer needed to control all of the devices and functions
  • Very low power consumption. Less than 1 amp at 12v DC
  • Compact and lightweight - only 75mm in diameter x 70mm long - less than 300 grams load on the 'scope!

Especificaciones

Capacidad


Tipo de sensor
Sensor CCD
Megapíxel
1,4
Muestreo digital (Bit)
16
Conexión (lado de telescopio)
1,25"
Tipo de cámara
Cámara CCD Astro
Autoguía
Interfaces
USB 2.0
Fuente de alimentación
12 (USB)
Antiblooming
Tamaño de píxel
6,45x6,45
Tamaño de chip (mm)
9x6,7
Resolución foto
1392x1040
Ruido de lectura
7
Enfriamiento
sí (Enfriamiento termoeléctrico)
Diferencia máxima de enfriamiento a temperatura ambiente
30

En general


Serie
SXVR-H
Longitud (mm)
100
Anchura (mm)
63
Altura (mm)
63
Peso (g)
350
Color
negro
