Astrofotografía > Cámaras > Cámaras para astronomía > Starlight Xpress > Trius > Starlight Xpress Cámara Trius SX-56 Mono
Nº de producto: 56658

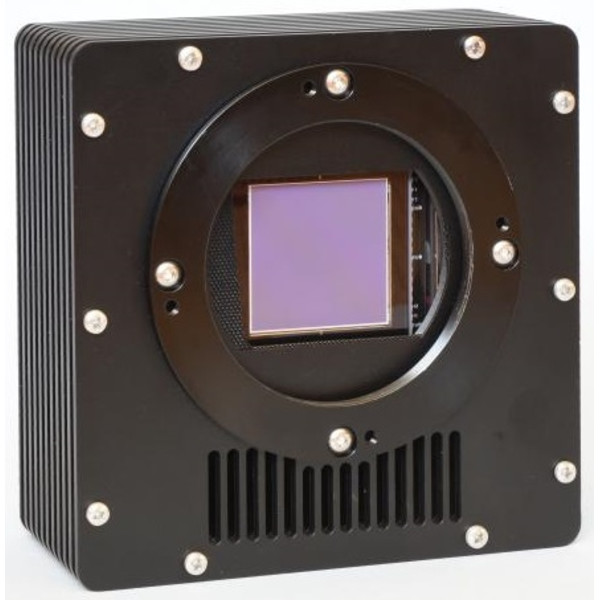

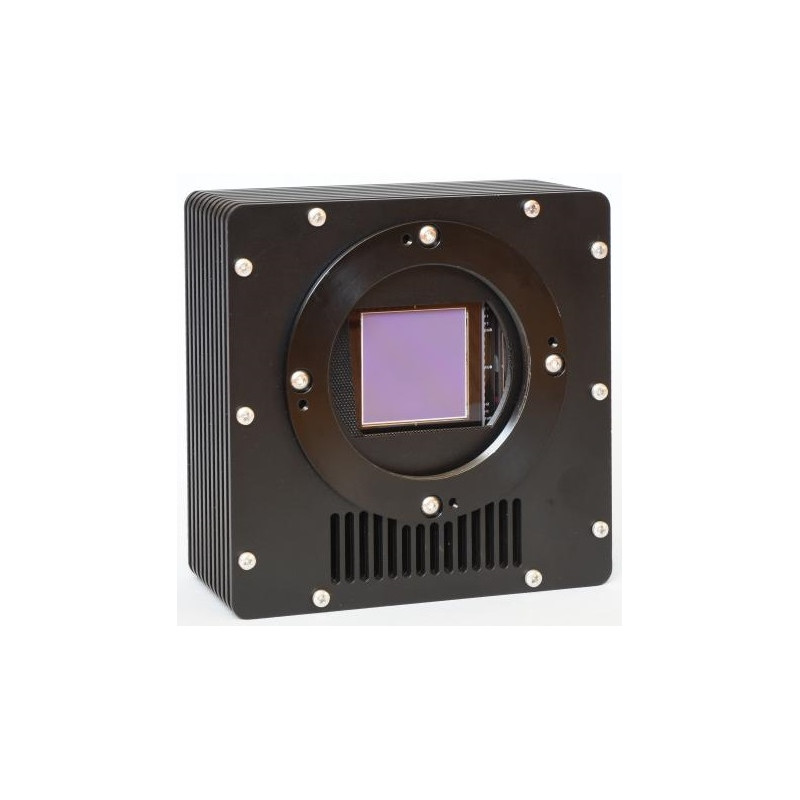

Cámara Trius SX-56 Mono

$ 10.500,00 IVA incluido, más gastos de envío
¿demasiado caro?
Amarillo
facturable en 1-2 semanas + Tiempo transporte

Descripción del producto

La descripción de este producto no está disponible en español. Esperamos que la versión en inglés le sea de utilidad. En cualquier caso, sentimos las molestias.

The SX-46 and SX-56 Cameras by Starlight Xpress are full-frame CCD cameras with 16.7 megapixel sensors. They utilises the popular KAF-16200 ( APS-H format array of 27 x 21.6 mm, 6µm pixels) and KAF-16803 sensors (square format array of 36.8 x 36.8 mm, 9µm square pixels) respectively. The Sensor habe a peak quantum efficiency of approximately 58% at 530nm. The use of a full frame chips requires a mechanical shutter and so SX have developed a custom roller blind assembly that uses mini stepper motors to provide an extremely uniform shutter action.

These two cameras incorporate many special features that improve on some other KAF-16200 and KAF-16803 based products:

A multi-coated synthetic sapphire input window. The extremely high thermal conductivity of sapphire (about 25x better than glass) eliminates the need for a window heater, by conducting waste heat from the camera body to the entire window surface. Dewing of the window is extremely unlikely to occur, even with maximum CCD cooling.

A stepper driven roller blind shutter with extremely uniform illumination of the sensor, even at 0.1 second exposure time. The shutter is designed for robust long-term use, but is also very easy to service or replace, if necessary.

A compact, dry argon filled CCD chamber, with O ring sealing. No desiccant to regularly replace. The window is easy to clean with an air duster or soft cloth.

Built-in LED flood illuminator for RBI elimination (trapped electrons from previous images).

Fast image download time - approximately 6.5 seconds for a full 16.7 megapixel image.

A three stage Peltier cooler to give better than -45°C below ambient, with an efficient temperature controller to keep power consumption to less than 2 amps at 12v DC.

Standard 'Trius' 3 port USB 2 hub built-in.

A compact overall size of 136 mm square and 70 mm deep (+ handles). Only 1.7 Kg total weight.

With a Trius camera from Starlight Xpress you take a step into the high-end applications of astrophotography!

Especificaciones

Capacidad


Tipo de sensor
Sensor CCD (Kodak KAF-16803)
Tamaño de chip (mm)
36,8 x 36,8
Megapíxel
16,7
Tamaño de píxel
9,0
Resolución foto
4096 x 4096
Enfriamiento
Interfaces
USB 2.0
Cámara a color
no
Diferencia máxima de enfriamiento a temperatura ambiente
45
Tiempo de exposición mínimo
0,1
Ruido de lectura
9
Full Well Capacity
100.000
Fuente de alimentación
12
Diagonal del chip (mm)
52,0
Obturador
Mecánico

Equipo


Rueda de filtros
no

En general


Peso (g)
1700
Serie
Trius
Medidas exteriores longitud x anchura x altura (cm)
7,0 x 13,6 x 13,6

Aplicaciones


AllSky, Meteore
no
Autoguía
no
Luna y planetas
no
Nebulosas y galaxias

Accesorios recomendados

Filtro (2)
Filtro de bloqueo

Omegon Filtro UV/IR CUTOFF 1,25"

$ 79,00*
Espectrografía & Fotometría (1)
Espectroscopio

Paton Hawksley Espectroscopio Star Analyser 100

$ 203,00*

*Todos los precios incluyen IVA y gastos de envío.
