Monturas & accesorios > Monturas > Ecuatorial con GoTo > Alcor-System > Alcor-System Montura Direct Drive Nova 200
Nº de producto: 61595

Montura Direct Drive Nova 200

$ 58.000,00 IVA incluido, más gastos de envío
¿demasiado caro?
Rojo
Este producto ya no está disponible + Tiempo transporte

Descripción del producto

La descripción de este producto no está disponible en español. Esperamos que la versión en inglés le sea de utilidad. En cualquier caso, sentimos las molestias.

Direct drive mounts are used in recent professional telescopes mounts and is the state of the art. Here are in a nutshell the main advantages:

  • No gear, and no worm and no belts: no maintenance, no mechanical wear, no summer-winter gear and worm tuning
  • Semi absolute encoders: no periodic error, accurate positionning and speed accuracy, very smooth motion
  • High speed and noiseless slewings
  • Long unguided exposures (15 min with 2m focal length): no guiding camera is necessary!

Further advantages of the Alcor-Sytem Nova:

  • Axis brake: This mount has current loss magnetic brakes to ensure telescope tube safety

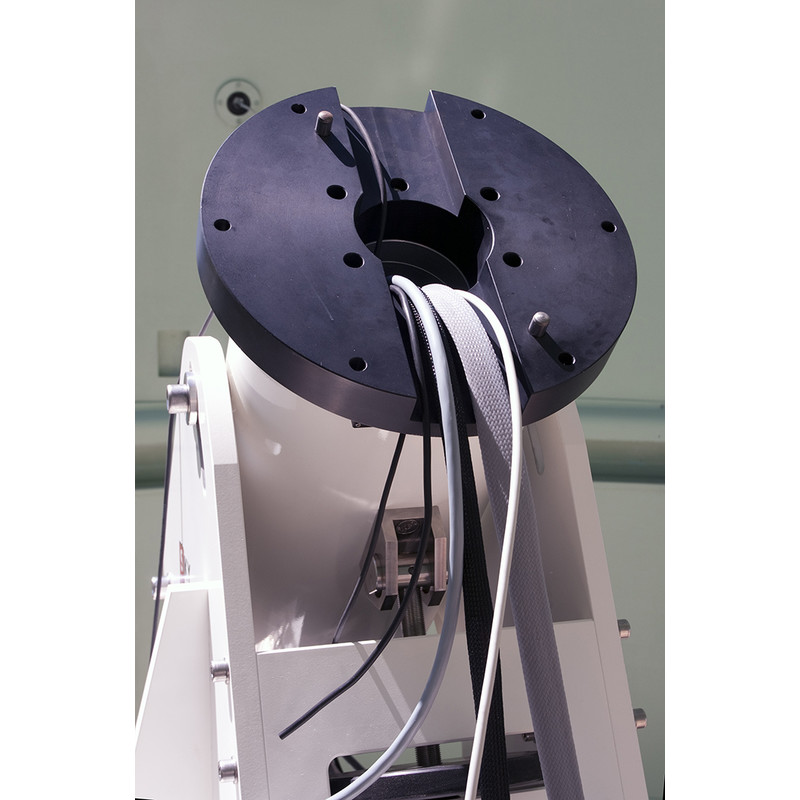

  • Because axis have large hollow, any cables for camera and any instruments can be passed thru the axis.
  • On startup the mount knows where it is located on the sky due to absolute positionning system.

The Nova mount works so close to perfection, that if the Optical Tube Assembly (OTA) is stiff, it can acheive long unguided exposures. If the tracking/speed model (from the pointing model) is enabled within the software mount, the mount can compensate for bad polar alignment.

  • Motors: One high torque frame less brusless motor per axis
  • Encoders: 67 millions steps per rotation (26 bits), Absolute encoders 0.019 arsec per encoder step
  • Moving speed: 20°/s
  • Pointing accuracy (with Pointing model): down to 5 arcsec rms
  • Tracking accuracy: Better than 0.25 arcsec in 5 min

Tracking fast objects: The mount (and the software) can move the mount at asteroid motion rate (plus the sidereal rate, refraction rate and tracking model rate). The image shows a 600s exposure with speed object enabled. The asteroid is pin point sharp and this is not anymore required to split the exposures so that the asteroid does not trail! The mount is able to perform earth artificial satellite tracking, based on satellite TLE that is used to predict their trajectory. This can be possible with low orbit satellites such as ISS. The mount prepares it position on the satellite path, and start tracking when the satellite appears over the horizon. The mount software can retrieve from the internet TLEs and perform computations of the satellite pass.

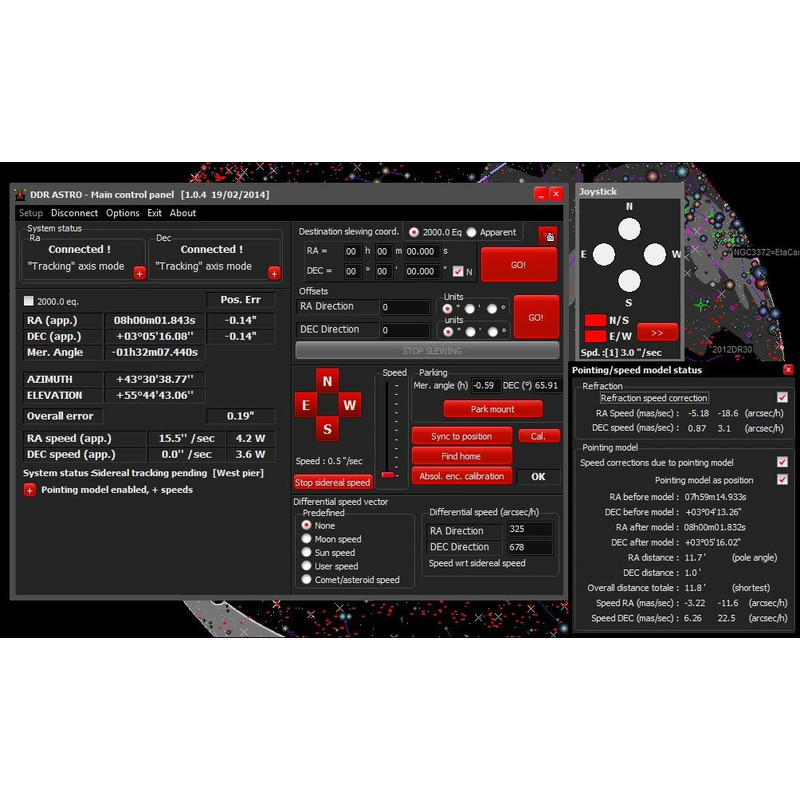

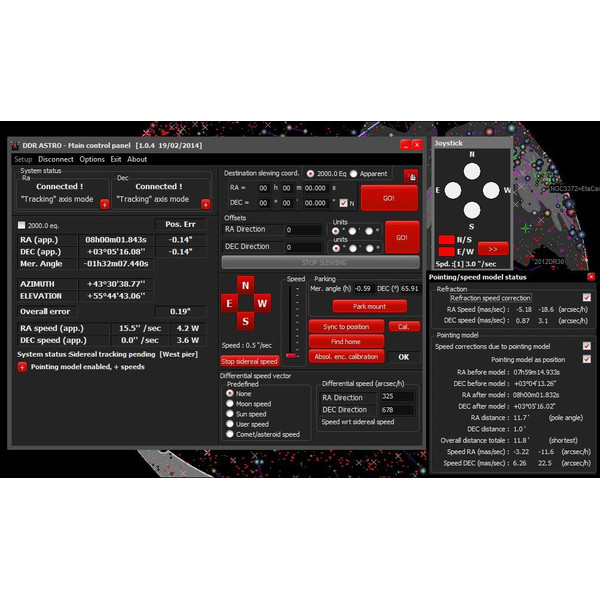

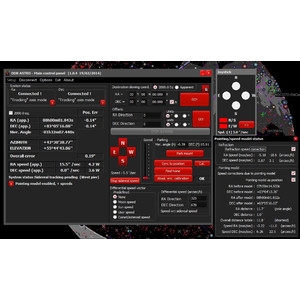

The software is a very advanced software, that includes Tpoint pointing model, as well as speeds model to compensate for non perfect polar alignement. It has an ASCOM interface, so that any ASCOM compliant software can drive the mount.

The mount comes without counterweights! Optional available are Counterweights, a pier and polar finder.

Especificaciones

Capacidad


Carga adicional máxima (kg)
250
Caballete de montura
ninguno
Contrapeso(s)
0
Peso de la montura (kg)
220
Tensión de entrada
48
Ajuste de altura de polo (°)
0 - 60 (Standard)
Interfaces
Ethernet
Ajuste de precisión del azimut (°)
+/- 15
Sistema soportado de servicio
Windows 7 to 10
Ruta de cable
interno
Diámetro del eje de declinación (mm)
180
Diámetro del eje de ascensión recta (mm)
180

Peculiaridades


Sistema GoTo

Equipo


Trípode
sin trípode

En general


Medidas exteriores longitud x anchura x altura (cm)
100 x 100 x 60
Tipo
Montura
Tipo de construcción
ecuatorial
