KASPER & RICHTER
The Mirror Compass suitable for basic orientation. Ideally it is suitable for climbing and water sports. Bearing the direction the needle can always be kept in perspective, in doing so the mirror must be unfolded. The mirror compass is perfectly suited for the cards work. It has a transparent base plate and a transparent fluid-filled capsule. Through the mirror creates an extremely long unfolded edge for the marking of directions on the map. It has a reading accuracy of 1.0 ° and is easy to use.

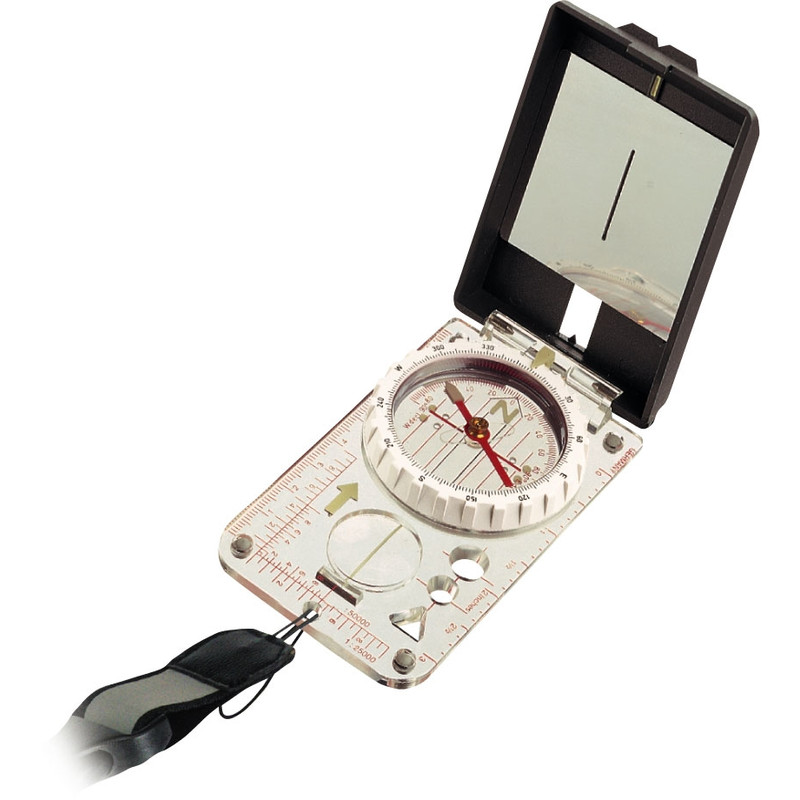

Mirror Compass SHERPA BW 2

• Developed and tested by the BRK mountain rescue service
• Transparent plastic base
• High-magnification lens (18 dpt.)
• Three holes with alignment crosses
• Cm and inch markings
• Plan display/ruler 1:25.000 and 1:50.000
• Anthracite-coloured lid made from special plastic with mirror on the inside and threeway sighting system
• Extremely long orientation guide (17cm)
• Fluid-filled capsule with large map viewer (Ø 44 mm) and long needle with sapphire bearing
• N/S- and O/W lines
• Made in Germany
• Easily movable rotary scaled ring with 360° scale (marking for every 2 degree)
• Adjustable correction for magnetic deviation (max. 90° W/E)
• Needle tip, north symbol, bearing markings, index luminescent
• Lanyard

Technical Data:

• Unit size 105 x 60 x 16 mm
• Weight 70 g
